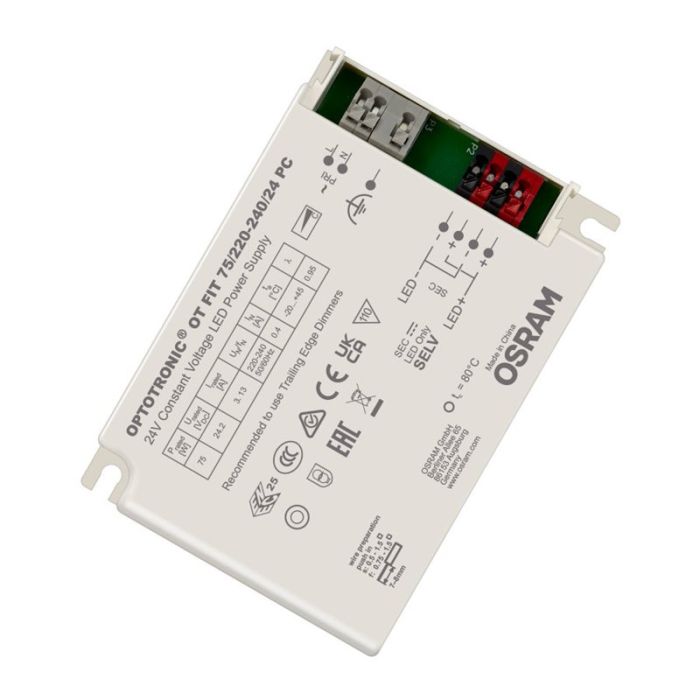

Led Driver Ot Fit 75 /220-240/24 Pc Mains Dimmable 4062172237413

Osram Led Driver Ot Fit 75 /220-240/24 Pc Mains Dimmable 4062172237413 LEDOTFIT7524PC

Osram Led Driver Ot Fit 75 /220-240/24 Pc Mains Dimmable for 24V LED strips
EAN: 4062172237413

Optional orange cable clamp A-style for independent mounting to be ordered separately

Product family benefits
IP rating: IP20
High efficiency
Very stable output power
High electronical reversible short-circuit, overload, overtemperature protection
Independent installation possible

Areas of application
Suitable for luminaires of protection classes I and II
Hospitality - decorative lighting, night light
Restaurants - decorative lighting
Shops - decorative lighting, shelf lighting
Residential - cove lighting, under cabinet lighting

Technical Data

Electrical data
Nominal input voltage: 220 240 V
Mains frequency: 50/60 HZ Hz
Input voltage AC: 198 264 V
Total harmonic distortion: < 15 %
Power factor ?: > 0.95
Efficiency in full-load: 92 %
Device power loss: 6.6 W
Inrush current: < 50 A
Max. ECG no. on circuit breaker 10 A (C): 9
Max. ECG no. on circuit breaker 10 A (B): 6
Max. ECG no. on circuit breaker 16 A (B): 12
Max. ECG no. on circuit breaker 16 A (C): 19
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 24.2 V
Nominal output power: 24.2...75.8 W
Maximum output power: 75.8 W
Galvanic isolation: SELV
Output PWM frequency: 3k Hz

Dimensions & weight
Mounting hole spacing, length: 99.0 mm
Product weight: 210.00 g
Cable cross-section, input side: 0.5 1.5 mmSq
Cable cross-section, output side: 0.75 1.5 mmSq
Wire preparation length, input side: 7 8 mm
Wire preparation length, output side: 7 8 mm
Mounting hole spacing, width: 64.0 mm
Length: 110.0 mm
Height: 30.0 mm
Width: 76.0 mm

Colors & materials
Casing material: Plastic

Temperatures & operating conditions
Ambient temperature range: -20 +45 DegC
Maximum temperature at tc test point: 80 DegC
Max.housing temperature in case of fault: 110 DegC
Temperature range at storage: -20 80 DegC
Permitted rel. humidity during operation: 5 85 %

Lifespan
ECG lifetime: 50000 h

Capabilities
Dimmable: Yes
Dimming interface: Phase Cut
Dimming range: 3 100 %
Dimming method: PWM
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
No-load proof: Yes
Suitable for fixtures with prot. class: I
Type of connection, input side: Fixed connection (terminal)
Type of connection, output side: Fixed connection (terminal)
Number of channels: 1
Control interface: Trailing edge dimmer recommended

Programming
Tuner4TRONIC: No

Certificates & standards
Approval marks - approval: CE / ENEC / CCC / RCM / UKCA / EAC / SELV / CB
Standards: Acc. to EN 55015/Acc. to EN 60598-1/Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 61547/Acc. to EN 62384/CISPR 15/EN 55015
Protection class: II
Type of protection: IP20

Logistical data
Commodity code: 850440829000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 14-04-2022
Primary Article Identifier: 4062172237413
Candidate List Substance 1: Lead
CAS No. of substance 1: 7439-92-1
Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: e82c1626-bf2c-4d51-a616-874008d9cb7f
