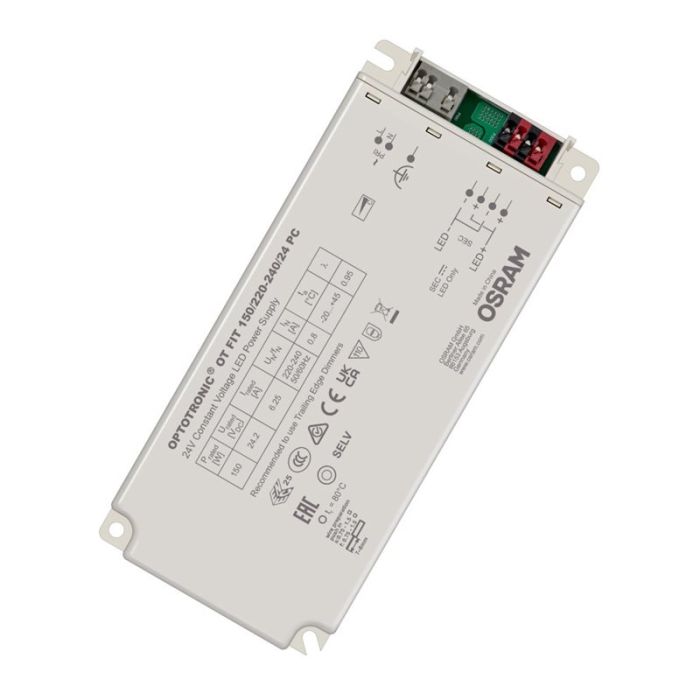

Led Driver Ot Fit 150 /220-240/24 Pc Mains Dimmable 4062172237642

Osram Led Driver Ot Fit 150 /220-240/24 Pc Mains Dimmable 4062172237642 LEDOTFIT15024PC

Osram Led Driver Ot Fit 150 /220-240/24 Pc Mains Dimmable for 24V LED strips
EAN: 4062172237642

Optional orange cable clamp B-style for independent mounting to be ordered separately

Product family benefits
IP rating: IP20
High efficiency
Very stable output power
High electronical reversible short-circuit, overload, overtemperature protection
Independent installation possible

Areas of application
Suitable for luminaires of protection classes I and II
Hospitality - decorative lighting, night light
Restaurants - decorative lighting
Shops - decorative lighting, shelf lighting
Residential - cove lighting, under cabinet lighting

Technical Data
Electrical data
Nominal input voltage: 220 240 V
Mains frequency: 50/60 HZ Hz
Input voltage AC: 198 264 V
Total harmonic distortion: < 15 %
Power factor ?: > 0.95
Efficiency in full-load: 92 %
Device power loss: 13 W
Inrush current: < 60 A
Max. ECG no. on circuit breaker 10 A (C): 3
Max. ECG no. on circuit breaker 10 A (B): 2
Max. ECG no. on circuit breaker 16 A (B): 4
Max. ECG no. on circuit breaker 16 A (C): 6
Surge capability (L/N-Ground): 2 kV
Surge capability (L-N): 1 kV
Nominal output voltage: 24.2 V
Nominal output power: 60.5...151.3 W
Maximum output power: 151.3 W
Galvanic isolation: SELV
Output PWM frequency: 3k Hz

Dimensions & weight
Mounting hole spacing, length: 159.5 mm
Product weight: 580.00 g
Cable cross-section, input side: 0.75 1.5 mmSq
Cable cross-section, output side: 0.75 1.5 mmSq
Wire preparation length, input side: 7 8 mm
Wire preparation length, output side: 7 8 mm
Mounting hole spacing, width: 66 mm
Length: 170.0 mm
Height: 30.0 mm
Width: 76.0 mm

Colors & materials
Casing material: Plastic

Temperatures & operating conditions
Ambient temperature range: -20 +45 DegC
Maximum temperature at tc test point: 80 DegC
Max.housing temperature in case of fault: 110 DegC
Temperature range at storage: -20 80 DegC
Permitted rel. humidity during operation: 5 85 %

Lifespan
ECG lifetime: 50000 h

Capabilities
Dimmable: Yes
Dimming interface: Phase Cut
Dimming range: 3 100 %
Dimming method: PWM
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
No-load proof: Yes
Suitable for fixtures with prot. class: I
Type of connection, input side: Fixed connection (terminal)
Type of connection, output side: Fixed connection (terminal)
Number of channels: 1
Control interface: Trailing edge dimmer recommended

Programming
Tuner4TRONIC: No

Certificates & standards
Approval marks - approval: CE / ENEC / CCC / RCM / UKCA / EAC / SELV / CB
Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 60598-1/Acc. to EN 62384/CISPR 15/EN 55015
Protection class: II
Type of protection: IP20
