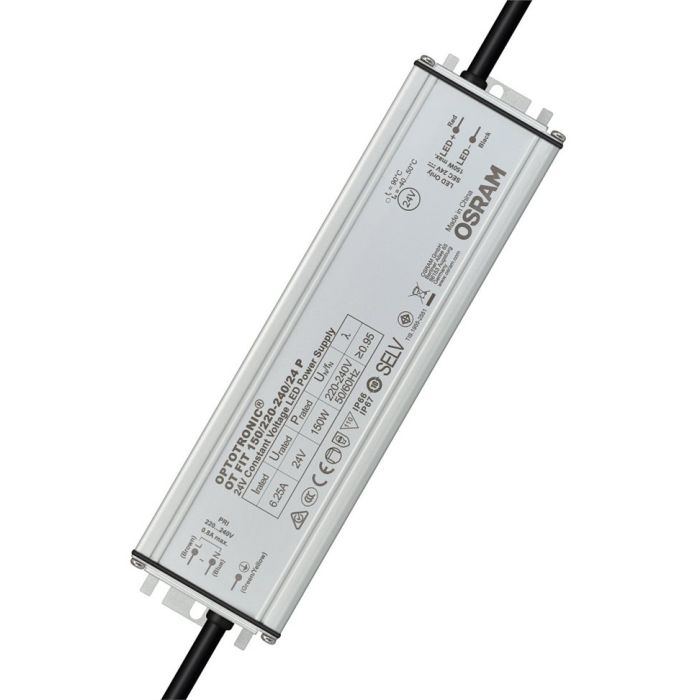

Led Driver Ot Fit 150/220-240/24 P 24v 150w 4062172085601

Osram Led Driver Ot Fit 150/220-240/24 P 24v 150w 4062172085601 LEDOTFIT15024P

OPTOTRONIC FIT 24V P | Constant Voltage - Non dimmable

EAN: 4062172085601

Product family features
Small housing design for mounting in coves or linear luminaires
Versatile scope of application thanks to an output power range of up to 300 W
Robust and durable design for outdoor applications

Areas of application
For example luminous signage in areas such as hotels
Public squares and architecture lighting
Suitable for indoor and outdoor SELV installations

Electrical data
Nominal output power: 150 W
Mains frequency: 50 60 Hz
Nominal voltage: NaN V
Device power loss: 13 W
Power factor ?: 0.95
Inrush current: 55 A
Nominal output voltage: 24 V
Output ripple Voltage (100 Hz) : < 2 %
Input voltage AC: 198 264 V

Dimensions & weight
Length: 240.0 mm
Width: 53.0 mm
Height: 31.5 mm
Mounting hole spacing, length: 188.0 mm
Mounting hole spacing, width: 27.0 mm
Product weight: 610.00 g

Temperatures & operating conditions
Ambient temperature range: -40 +50 DegC
Permitted rel. humidity during operation: 5 85 %

Capabilities
Suitable for fixtures with prot. class: I / II
Overheating protection: Yes
Overload protection: Yes
Short-circuit protection: Yes
No-load proof: Yes
Number of channels: 1
Dimmable: No

Programming
Tuner4TRONIC: No
Tuner4TRONIC Field App: No

Certificates & standards
Type of protection: IP66/IP67
Standards: Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-2-2/Acc. to EN 61000-3-2/Acc. to EN 60598-1/Acc. to EN 62384
Approval marks - approval: CE / CCC / TISI / RCM

Logistical data
Commodity code: 850440829000
