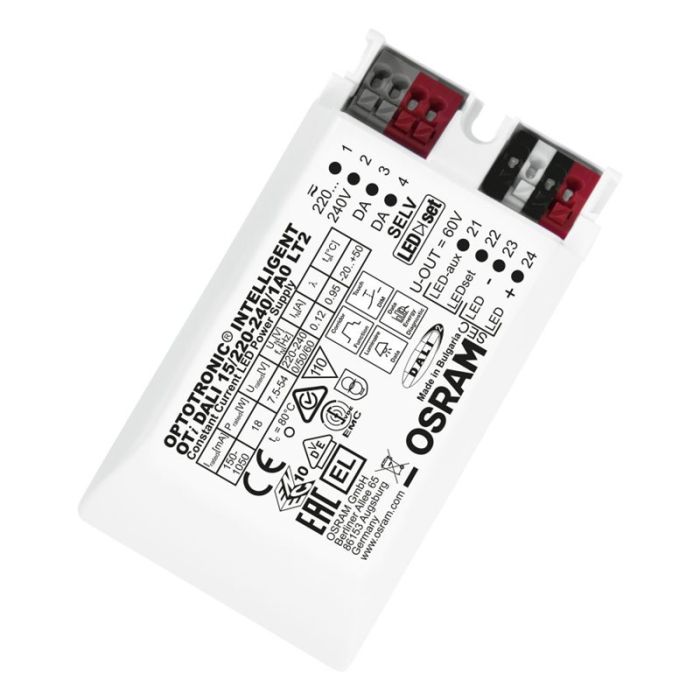

Led Driver Ot Dali2 15/220-240/1a0 Lt2 4062172143912

Osram Led Driver Ot Dali2 15/220-240/1A0 Lt2 4062172143912 LEDOTDALI2151A0LT2

EAN: 4062172143912

Optional orange cable clamp F-style,for independent mounting of the driver, to be ordered separately

Product family benefits

• Versatile DALI window driver due to flexible output characteristic
• Very high efficiency
• Protection of the system thanks to thermal management and Smart Control
• High-quality dimming of 1 100 % by amplitude dimming

Versatile scope of application due to OSRAM DALI Technology:

• Easy to use in corridors and restrooms because of three-level Corridor function
• Touch DIM application: easy to control via pushbutton or sensor
• Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
• Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
• Feedback of power consumption and operating hours (Fit for SMART GRID)
• Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting

Areas of application

• Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
• Suitable for use in luminaires with flexible current setting (DALI, CLO, LEDset)
• Suitable for indoor SELV installations
• Suitable for luminaires of protection classes I and II
• Suitable for downlights, spotlights and LED panels
• Installation via Cable Clamp Kit possible (depending on version of product)

Electrical data

• Nominal input voltage: 220 240 V
• Mains frequency: 0/50/60 Hz
• Input voltage AC: 198 264 V
• Input voltage DC: 176 276 V
• Total harmonic distortion: < 10 %
• Power factor ?: 0.95
• Efficiency in full-load: 88 %
• Device power loss: 2.4 W
• Networked standby power: =0.30 W
• Inrush current: 5 A
• Max. ECG no. on circuit breaker 10 A (B): 82
• Max. ECG no. on circuit breaker 16 A (B): 130
• Max. ECG no. on circuit breaker 25 A (B): -
• Surge capability (L/N-Ground): 2 kV
• Surge capability (L-N): 1 kV
• Nominal output voltage: 7.5 54 V
• U-OUT (working voltage) : 60 V
• Nominal output current: 150 1050 mA
• Output current LEDset open: 75 mA
• Output current LEDset shorted: 350 mA
• Default output current: 350 mA
• Output current tolerance: +/-3 %
• Output ripple current (100 Hz): < 2 %
• Output PSTLM: =1
• Output SVM: =0.4
• Nominal output power: 18 W
• Maximum output power: 18 W
• Galvanic isolation DALI/output: SELV
• Galvanic isolation DALI/mains: Basic
• Galvanic isolation primary/secondary: SELV

Dimensions & weight

• Product weight: 100.00 g
• Cable cross-section, input side: 0.2 1.5 mmSq
• Cable cross-section, output side: 0.2 1.5 mmSq
• Wire preparation length, input side: 8.0 9.0 mm
• Wire preparation length, output side: 8.0 9.0 mm
• Length: 95.0 mm
• Width: 53.0 mm
• Height: 30.0 mm

Colors & materials

• Casing material: Plastic

Temperatures & operating conditions

• Ambient temperature range: -20 +50 DegC
• Maximum temperature at tc test point: 75 DegC
• Max.housing temperature in case of fault: 100 DegC
• Temperature range at storage: -25 85 DegC
• Permitted rel. humidity during operation: 5 85 %

Lifespan

• ECG lifetime: 50000 / 100000 h

Additional product data

• Successor EAN: 4062172143912
• Predecessor EAN: 4052899324879

Capabilities

• Dimmable: Yes
• Dimming interface: DALI / Touch DIM / Touch DIM Sensor
• Dimming range: 1 100 %
• Dimming method: Amplitude Modulation
• Constant lumen function: Programmable
• Overheating protection: Automatic reversible
• Overload protection: Automatic reversible
• Short-circuit protection: Automatic reversible
• No-load proof: Yes
• Intended for no-load operation: No
• Max. cable length to lamp/LED module: 2.0 m
• Suitable for fixtures with prot. class: I / II
• Suitable for emergency lighting: Yes
• Type of connection, output side: Push terminal
• Programming interface: DALI, LEDset
• DALI-2 Energy Data: Yes
• Number of channels: 1
• DALI-2 Diagnostic Data: Yes

Programming

• Tuner4TRONIC Field App: No
• Programming device: DALI / LEDset

Programmable features

• Lamp Operating Time: Yes
• Driver Guard: No
• DALI Settings: Yes
• Emergency Mode: Yes
• DALI-2 Luminaire Data: Yes
• Configuration Lock: No
• Soft Switch Off: Yes
• Dim to Dark: No
• TouchDIM + Sensor: Yes
• Corridor Functionality: Yes
• OEM Key: Yes

Certificates & standards

• Approval marks - approval: ENEC 10 / VDE / EMC / EL / CE
• Standards: Acc. to EN 61347-1/Acc. to EN 61347-2-13/Acc. to EN 55015/Acc. to EN 61547/Acc. to EN 61000-3-2/Acc. to EN 62384
• Protection class: II
• Type of protection: IP20

Logistical data

• Commodity code: 850440829000

Environmental information

• Date of Declaration: 10-11-2021
• Primary Article Identifier: 4052899324879 | 4062172143912
• Candidate List Substance 1: Lead
• CAS No. of substance 1: 7439-92-1
• Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
• Declaration No. in SCIP database: 08ca3009-16b1-4104-8382-194565783c1f | e9ec3393-37eb-446a-b083-3425ba8b180d
