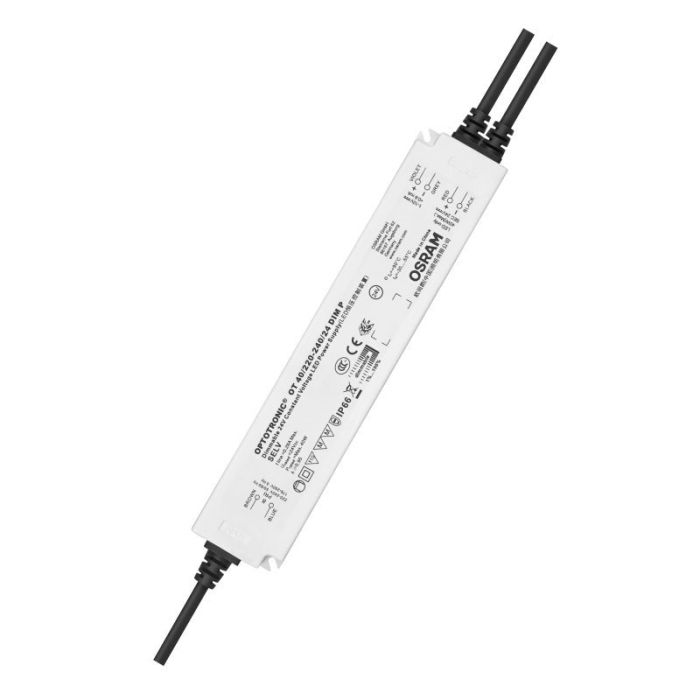

Osram Led Driver Ot 40/220-240/24 Dim P 24v 40w 4052899545823

Osram Led Driver Ot 40/220-240/24 Dimable P 24v 40w 4052899545823 LEDOT4024DIMP

CV Power supplies 24 V with 1-10 V

Product benefits

• Large range of products from 20 W to 250 W
• Installation in very cold and hot environments
• Very stable output power
• High electronical reversible short-circuit, overload, overtemperature protection
vSmart Power Supply boosting power to turn on cold LEDs
• Independent installation possible
• Dimming range 1-100 %

Product features

• DC mode functionality
• Type of protection IP66 and IP67
• Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
• Wide operating temperature range -30 +55 C
• Lifetime up to 50000 h (temperature at max. tc)
• Dimmable via fully isolated 1-10 V interface

Areas of application

• Facades, public squares, cruise ships
• Signage
>
• Suitable for indoor and outdoor installations

Specification

• EAN: 4052899545823
• Nominal voltage: 220-240 V
• Mains frequency: 0-60 Hz
• Input voltage AC: 198-264 V
• Total harmonic distortion: < 15 %
• Power factor: 0.95
• ECG efficiency: 85 %
• Device power loss: 6 W
• Power loss in stand-by mode:
