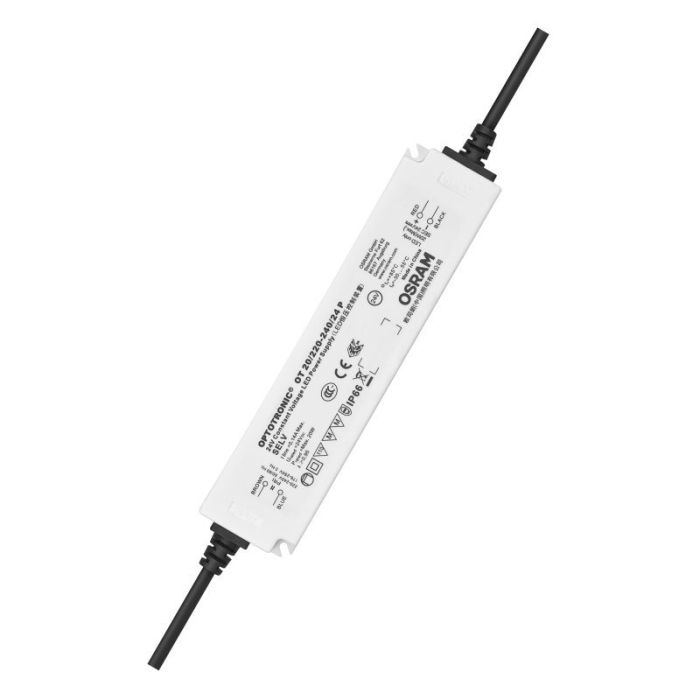

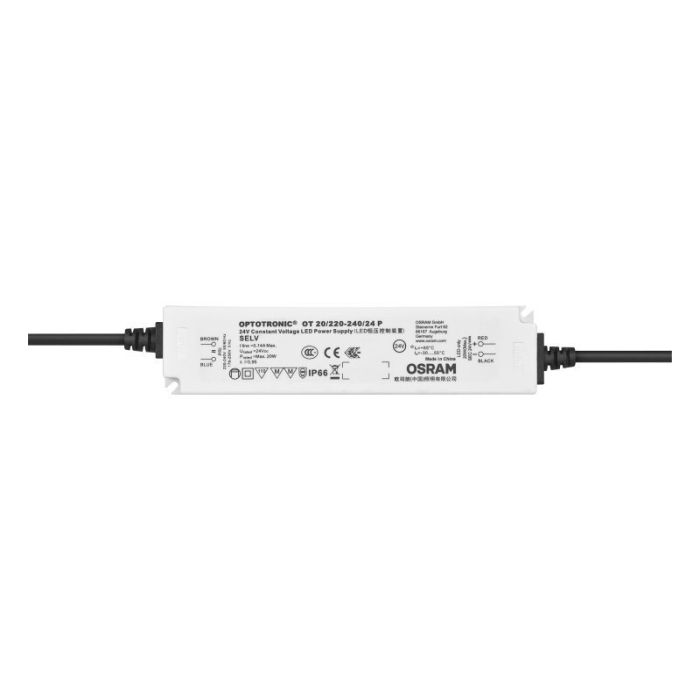

Led Driver Ot 20/220-240/24 P 24v 20w Ip66 4052899545922

Osram Led Driver Ot 20/220-240/24 P 24v 20w Ip66 4052899545922 LEDOT2024P

CV Power supplies 24 V OT 20/220-240/24 P Remove the limitations when you install light outside, with OPTOTRONIC CV 24 V power supplies. Ruggedly built, if you need a constant voltage source that can cope with damp or wet conditions and extremes of temperature, then a product from this range could be just what you need. These drivers are suitable for use in tight, flat luminaires and in suspended ceilings, and may be used outdoors (only within suitable luminaires). If you are creating signage, OPTOTRONIC CV 24 V power supplies work well with OSRAM signage LED modules such as BackLED and BoxLED, and in other settings they can be paired with suitably robust and protected modules such as LINEARlight Flex Protect, to give great performance, reliability and efficiency. Product Benefits: Large range of products from 20 W to 250 W Installation in very cold and hot environments Very stable output power High electronical reversible short-circuit, overload, overtemperature protection Smart Power Supply: boosting power to turn on cold LEDs Independent installation possible Product Features: DC mode functionality Type of protectio IP66 and IP67 Surge protection up to 4 kV (L-N) / 6 kV (L/N-PE) Wide operating temperature range -30 +55 C Lifetime: up to 50000 h (temperature at max. tc) Areas of application: Facades, public squares, cruise ships Signage Suitable for indoor and outdoor installations EAN: 4052899545922 Nominal input voltage: 220-240 V Mains frequency: 0-60 Hz Input voltage AC: 198-264 V Input voltage DC: 176-250 V Total harmonic distortion: < 15 % Power factor: 0.95 ECG efficiency: 83 % Device power loss: 4.1 W Inrush current: 20 A Max. ECG no. on circuit breaker 10 A (B): 48 Max. ECG no. on circuit breaker 16 A (B): 77 Max. ECG no. on circuit breaker 25 A (B): 120 Surge capability (L-N): 4 kV Nominal output voltage: 24.2 V Nominal output power: 20 W Galvanic isolation: SELV Galvanic isolation primary/secondary: 3 kV Length: 178 mm Width: 43 mm Height: 25 mm Mounting hole spacing, length: 169 mm Product weight: 315 g Cable cross-section, input side: 1.0 sqmm Cable cross-section, output side: 1.0 sqmm Wire preparation length, input side: 90 mm Wire preparation length, output side: 90 mm Cable/wire length, input side: 300 mm Cable/wire length, output side: 300 mm Casing material: Plastic Ambient temperature range: -30 +55 C Maximum temperature at tc test point: 85 C Max.housing temperature in case of fault: 110 C Permitted rel. humidity during operation: 5-85 % ECG lifetime: 50000 h Encapsulated: Yes Dimmable: No Overheating protection: Yes Overload protection: Yes Short-circuit protection: Yes No-load proof: Yes Suitable for fixtures with prot. class: II Type of connection, output side: Cables Number of channels: 1 Approval marks - approval: ENEC / RCM / CCC / EAC Standards: Acc. to EN 61000-3-3/Acc. to EN 60598-1/Acc. to EN 62384 Protection class: II Type of protection: IP66 Temperature range at storage: -40 +85 C
