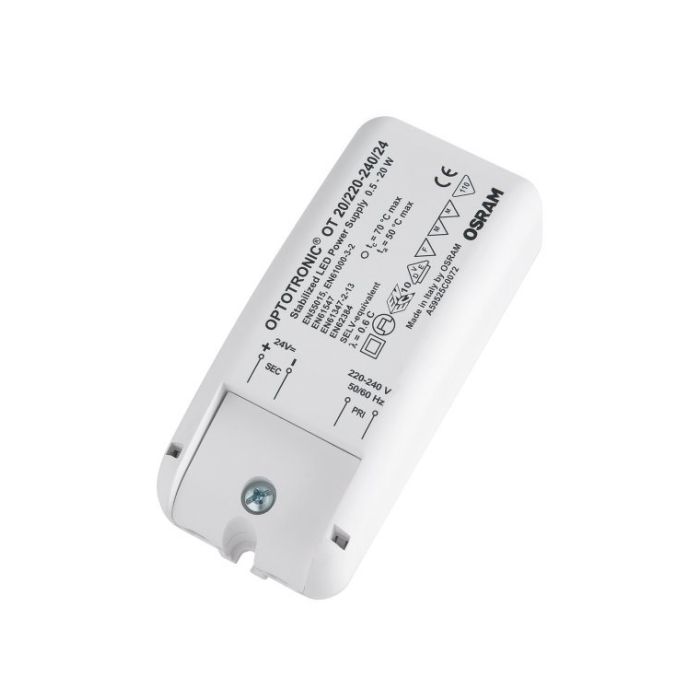

Osram Led Driver Ot 20/220-240/24 24v 20w, 4050300618111

Product features
Electronical stabilized LED Power Supply
Dimmable Possible with OPTOTRONIC control gear
Constatnt luminous flux for very low and high temperatures due to Smart Power Supply

Product benefits

Very high efficiency and reliability
Versatile scope of application due to output power range of up to 240 W
Constant luminous flux for very low and high temperatures due to Smart Power Supply

Areas of application

Suitable for indoor and outdoor SELV installations
Suitable for use in tight, flat luminaires or installation in suspended ceilings
Outdoor applications only in suitable luminaires

EAN: 4050300618111
Dimmable: yes, with OPTOTRONIC control gear
Short-circuit protection: Automatic reversible
Overload protection: Automatic reversible
Overtemperature protection: Automatic reversible
Mains frequency: 50-60 Hz
Partial load: 0.5 - 20 W
Input voltage: 198 - 254 V
Output voltage: 24V
ECG efficiency: 83 %
Nominal voltage: 220 - 240 V
Nominal current: 0.35 A
Device power losses: max. 4 W
Power factor: min. 0.8
Inrush current: 10 A
Max. no. of ECGs on circuit breaker 10 A: 42
Max. no. of ECGs on circuit breaker 16 A: 68
Galvanic isolation primary/secondary: 3 kV
Surge capability (L-N): 1 kV
Lenght: 109 mm
Width: 50 mm
Height: 35 mm
Cable cross-section, input side: 0.75 - 1.5 sqmm
Cable cross-section, output side: 0.5 - 1.5 sqmm
Casing material: Plastic
Ambient temperature range: -20 +45 C
Max. temperature at tc test point: +70 C
Max. temperature in case of fault: +90 C
ECG lifespan: 30000 h
Suitable for fixtures with prot. class: II
No-load proof: yes
Maximum wiring lenght ECG/lamp: 10 m
Type of protection: IP20
Manufacturers Website: www.osram.com/osram_com/products/ electronics/indoor-ecg-for-led-modules-and-dimmers/constant-voltage-non-dimmable/cv-power-supplies-24-v
