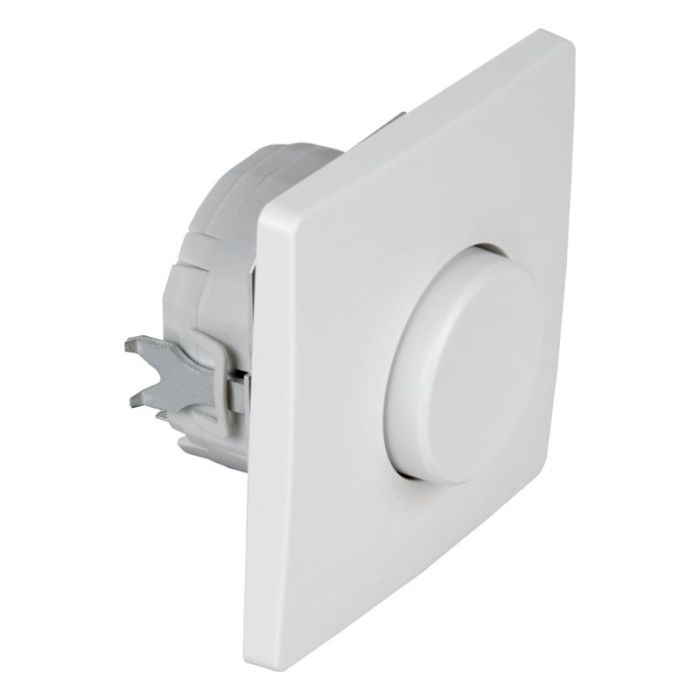

Led Dim Mcu Smart Potentiometer 1-10v Generation2 4062172224642

Osram Led Dim Mcu Smart Potentiometer 1-10v Generation2 4062172224642 LEDDIMMCUG2

Led Dim Mcu Smart Potentiometer 1-10v Generation2
EAN: 4062172224642

Product family benefits
Intuitive manual dimming and switching
Individual setting of minimal brightness level
Areas of application
Conference rooms
Restaurants
Shop lighting
Equipment / Accessories
Suitable for up to 50 electronic control gears (external load contact required)
Flexible expansion via external load contact and via signal amplifier DIM SA
Cover and rotary knob included

Electrical data
Nominal voltage: 230 V

Dimensions & weight
Length: 71.0 mm
Width: 71.0 mm
Height: 40.0 mm
Product weight: 88.00 g
Mounting hole spacing, length: 60.0 mm

Colors & materials
Product color: White

Temperatures & operating conditions
Ambient temperature range: -20 +50 DegC

Capabilities
Dimmable: Yes
Dimming interface: 1 10 V
Number of control outputs: 1
Load contact: 6 A
Type of installation: Integrated in flush device box

Certificates & standards
Type of protection: IP20
Protection class: II
Approval marks - approval: CE / UKCA / EAC

Logistical data
Commodity code: 853650809000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 26-03-2022
Primary Article Identifier: 4062172224642
Candidate List Substance 1: Lead
CAS No. of substance 1: 7439-92-1
Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: ce4496b2-2626-4496-8516-20d592fffb4a
