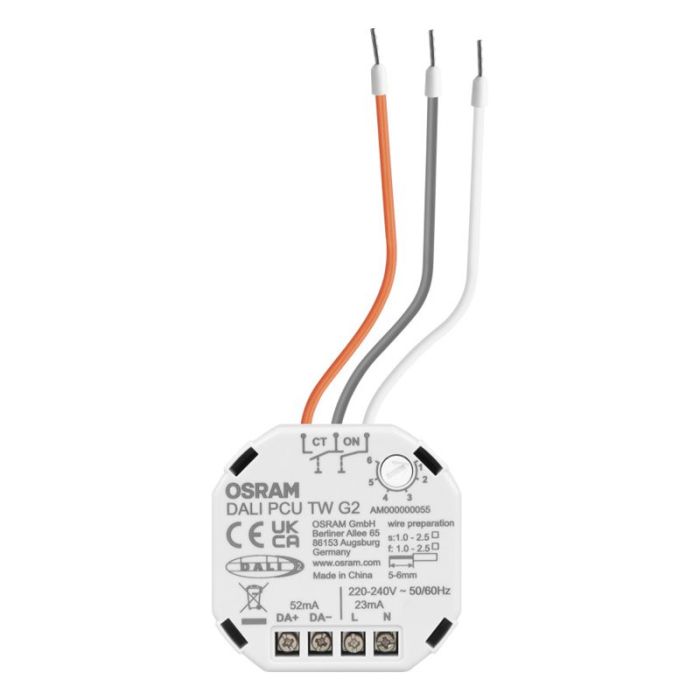

Led Dali Pcu Digital Push Button Control Unit G2 Tw 4052899631625

Osram Led Dali Pcu Digital Push button Control Unit G2 TW 4052899631625 LEDDALIPCUTWG2

DALI PCU TW G2

EAN: 4052899631625

Product family benefits

Suitable for Standard DALI and DALI DT8 (TW) drivers
Intuitive manual dimming, switching and changing of colour temperature
Individual setting of minimal brightness level
Individual setting of colour temperature range
Integrated Bus Power Supply

Areas of application

Conference rooms
Restaurants
Shop lighting
Private homes

Equipment / Accessories

Suitable for up to 25 electronic control gears
Cover and rotary knob included

Technical Data

Electrical data
Nominal voltage: 230 V
Mains frequency: 50 60 Hz

Dimensions & weight
Length : 49.0 mm
Width: 48.0 mm
Height: 22.0 mm
Product weight: 49.40 g

Colors & materials
Product color: White

Temperatures & operating conditions
Ambient temperature range: 0 +50 DegC

Capabilities
Dimmable: Yes
Dimming interface: DALI-2

Certificates & standards
Type of protection: IP20
Protection class: II
Approval marks - approval: CE / UKCA

Logistical data
Commodity code: 853650809000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration : 14-04-2023
Primary Article Identifier: 4052899631625
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained
