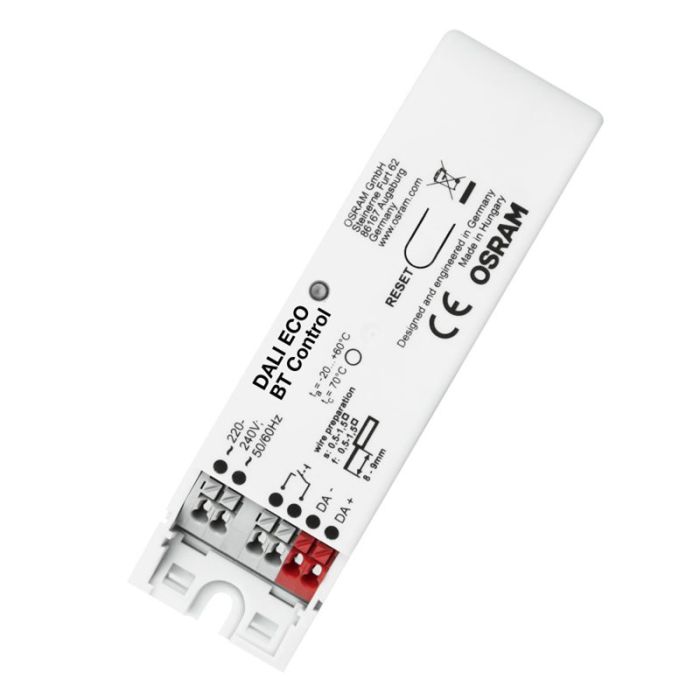

Led Dali Eco Bluetooth Lighting Control Via Smartphone 4052899988781

Osram Led Dali Eco Bluetooth lighting control via Smartphone 4052899988781 LEDDALIECOBT

DALIECO BT CONTROL

EAN: 4052899988781

Optional pair of green cable clamps ECO CI KIT, for independent mounting, to be ordered separately

Product family benefits
Control the light via Smartphone
Adjustment of all settings via smartphone
Plug and Play: Basic features usable without App
Simplified startup thanks to predefined operation modes
Intuitive manual dimming, switching and changing of colour temperature
Up to 4 groups separatly controllable
Adjustable Offset for different groups
Easy Scene creation via App
Scene-recall via OSRAM DALI PRO PB coupler possible
Firmware update over-the-air via Bluetooth possible
Integrated DALI supply
Control of standard white or Tunable White light acc. DALI device type 8 (DT8)*
Selected DALI parameters changeable via APP

Areas of application
Floor-standing luminaires
Meeting rooms
Conference rooms
Training rooms
Classrooms
Corridors
Shop lighting

Equipment / Accessories
Free App for iOS and Android available at the app store
Ceiling or independent installation via ECO CI KIT possible

Technical Data

Electrical data
Nominal voltage: 230 V
Mains frequency: 50/60 Hz

Dimensions & weight
Length: 108.0 mm
Width: 30.0 mm
Height: 21.0 mm
Product weight: 45.00 g

Temperatures & operating conditions
Ambient temperature range: -20 +60 DegC

Capabilities
Dimming interface: DALI
Number of control outputs: 1
Transmitter range: 15 m
Type of installation: Luminaire integration/Independent mounting

Certificates & standards
Type of protection: IP20

Logistical data
Commodity code: 853710989900

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 31-05-2022
Primary Article Identifier: 4052899988781
Candidate List Substance 1: Lead
CAS No. of substance 1: 7439-92-1
Safe Use Instruction: The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database: 615414d8-1b34-4895-b700-897d53a04379
