Led Corner Joiner (jumper) For 10mm Strips Ip20 Ledcljw2pin10

Comus Led corner joiner (jumper) for 10mm strips Ip20 LEDCLJW2PIN10 LEDCLJW2PIN10

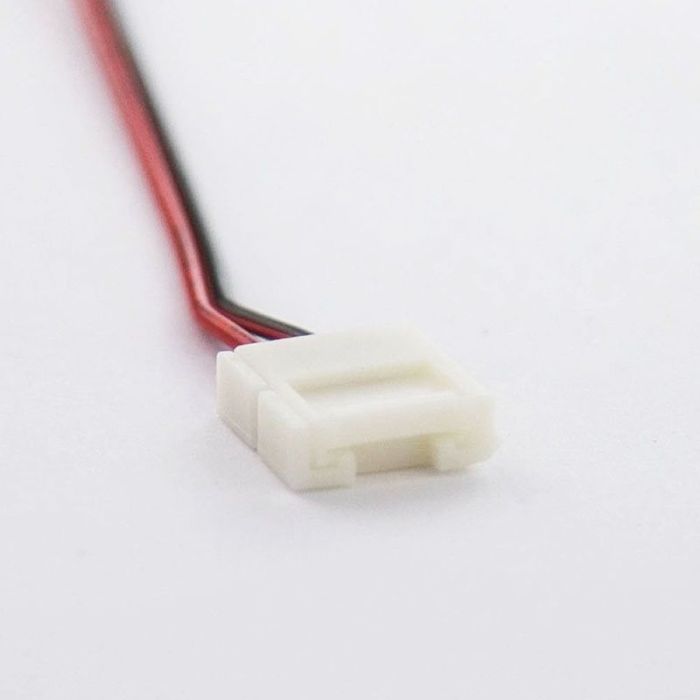

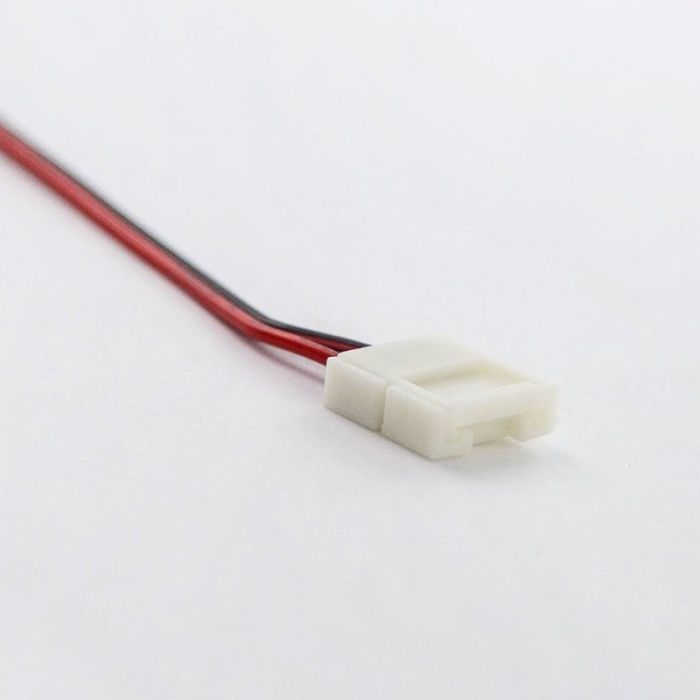

Penn Elcom 2pin quick corner joiner (board-to-board connector) with 135mm extension cable for 10mm wide LED strips

This quick to use joiner saves time and effort compared to other joiners avaialble on the market.
It also removes the need to solder on site and reduces wastage by allowing to connect off cuts together.

Easy to use jumper. Just unclick the upper part on each end of the joiner, carefully push the two 10mm strips inside until the PCB pad fits below the 2 pins.
Always take note to ensure correct polarity before powering the strips.

Compatible with all single colour Osram or Penn Elcom LED strips IP20 not wider than 10mm having up 120 LED chips per meter (including ShortPitch).
This power feeder can carry a max. current of 3A (so 72W at 24V or 36W at 12V).

Fixing - we strongly recommend the use of a double adhesive tape underneath the joiner or the use of silicone.
This will fix the device in place protecting the start of the LED tape on the long run.

Suitable profiles
With cover - LEDAL01, LEDAL03, LEDAL09, LEDAL16, LEDAL20, LEDAL21, LEDAL23, LEDAL26, LEDAL27, LEDAL29, LEDAL30, LEDAL31, LEDAL32, LEDAL33, LEDAL40, LEDAL41, LEDAL42

Rated current: 3 A
Max wattage (12/24V): 36/72 W
LED strip required width: 10 mm
Cable length: 135 mm
Conductor cross section AWG: 22 (0.33 sqmm)
Cable rated insulation voltage: 300 V
Width: 14.5 mm
Length (including cable): 168 mm
Height: 5 mm
Quantity: sold individually
