Led 3 Core Flat Cable 20awg Stranded Copper Ca3f20

Penn Elcom Led 3 Core Flat Cable 20awg Stranded Copper CA3F20 CA3F20

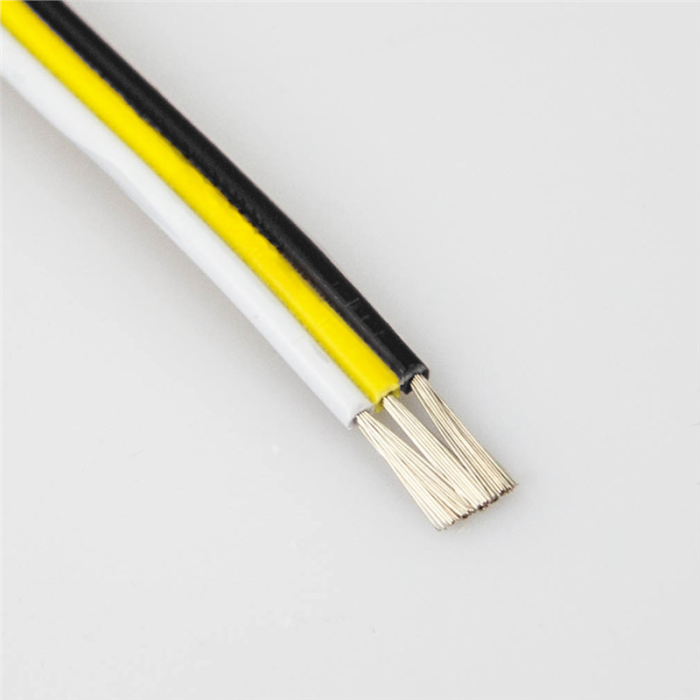

3 Core Flat 20AWG White/ Yellow /Black
Led 3 Core Flat Cable 20awg Stranded Copper

3 Core Flat 20AWG White/ Yellow /Black Stranded Copper 300V Cable

Penn Elcom CA3F20 is a low voltage flat power cable; cables pull apart for quick separation, polarity is easily identifiable for DC applications.

PRICED PER METER

Product features:

Ideal for use with tunable white (dual colour) LED flex
Easy to solder directly to LED pad or extend existing cable tail
Construction Tinned Copper
Conductors Red/Black
Insulation for polarity identification.
PVC Insulation
Conductor: 20 AWG (0.42 sqm)
No. of Conductors: 3
Conductor structure: 21/0.16 AWG/mm
Insulation Nominal Wall: 0.47 mm
Nominal outer diameter: 1.8/5.4 mm
Temperature Rating: -30 to +80 Degrees
Voltage (AC/DC): 300 V
Current Rating: 3.4 A
