Large Recessed Latch Twist Key L546/525z

Penn Elcom Large Recessed Latch Twist Key L546/525Z L546/525Z

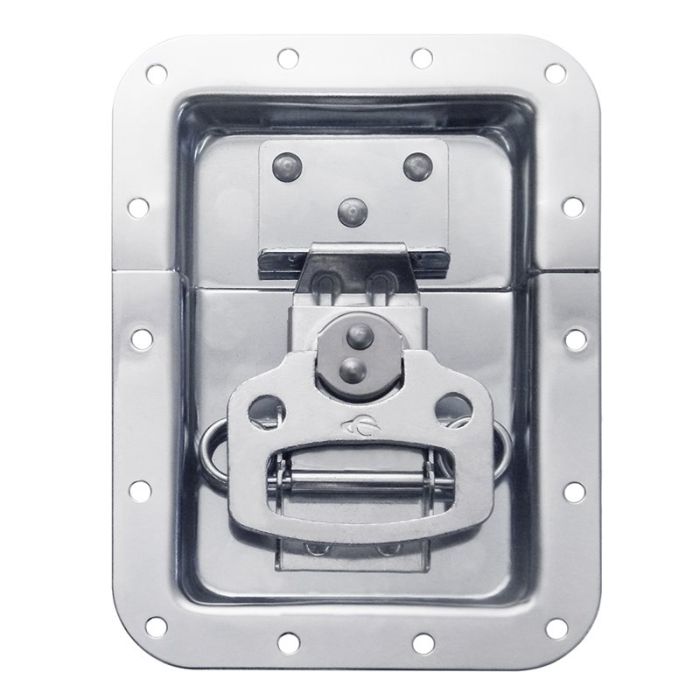

Large Low Profile Recessed Latch with Large Twist Key in Deep Plain Dish.

From Split to Hole Centre: 19mm / 3/4"

Securely close your case with a Penn Elcom latch mounted in a large recessed dish. For use on large-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish. The fixing holes are 19mm / 3/4 away from the central split of the dish making it perfect for tongue and groove edge extrusions. Large twist key latches have a low profile design, which allows them to be completely recessed within the dish.

Product Features?:
- Dish Width: 127mm / 5
- Dish Height: 174mm / 6 7/8
- Dish Depth: 16mm / 5/8
- Offset: No
- Lockable: No
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.43kg / 0.94lb

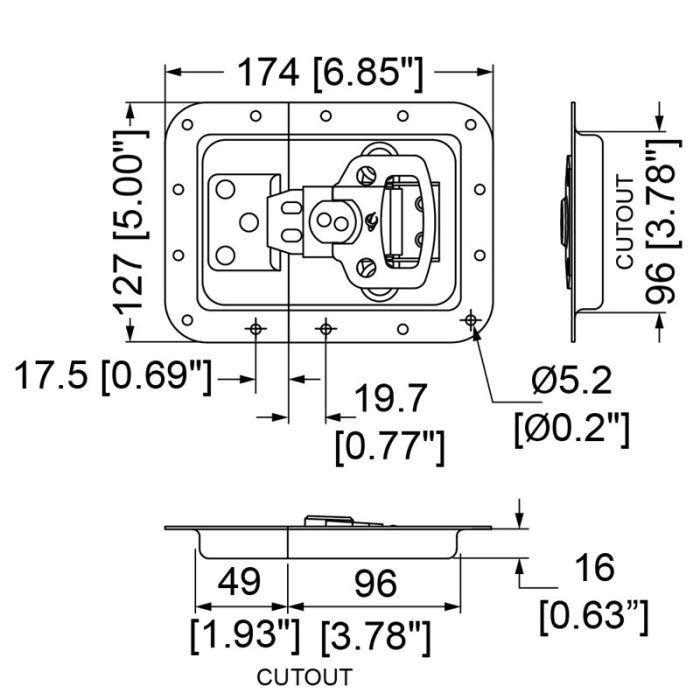

Installation Information?:
- Panel Cut-Out Size:
- Cut-Out Width: 96mm / 3 3/4
- Cut-Out Height: 96mm + 49mm / 3 3/4 + 1 15/16
- From Split to Hole Centre: 19mm / 3/4
- Mounting Holes: 14 x 5.2mm / 3/16
- Rivets Required for Installation: 14
- Suits L0526 Backplate
