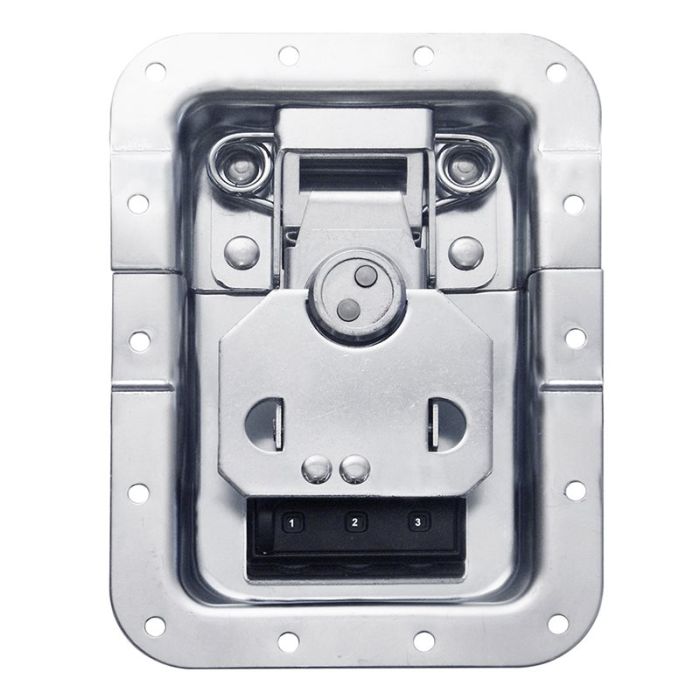

Large Recessed Latch Twist Key Combination Lock Offset L924/527/cl

Penn Elcom Large Recessed Latch Twist Key Combination Lock Offset L924/527/CL L924/527/CL

Large Recessed Latch with Large Twist Key and Combination Lock in Deep

Offset Dish: 27mm/ 1 1/16" From Split to Hole Center: 19mm / 3/4"

Securely close your case with a Penn Elcom latch mounted in a large recessed dish. For use on large-sized cases. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright Penn Elcom finish. The fixing holes are 19mm / 3/4 away from the central split of the dish making it perfect for tongue and groove edge extrusions. Large twist key latches have a low profile design, which allows them to be completely recessed within the dish. An integrated combination lock removes the worry of losing or forgetting your key while securing the contents of your case. A 27mm / 1 1/16 offset on each half of the dish accommodates the corresponding edge extrusions and provides a flush and clean looking installation.

Product Features:?
- Dish Width: 127mm / 5
- Dish Height: 174mm / 6 7/8
- Dish Depth: 16mm / 5/8
- Offset: 27mm / 1 1/16
- Lockable: With Combination Lock for Added Security
- Finish: PennBrite
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.60kg / 1.33lb

Installation Information:?
- Panel Cut-Out Size:
- Cut-Out Width: 96mm / 3 3/4
- Cut-Out Height: 96mm + 49mm / 3 3/4 + 1 15/16
- From Split to Hole Centre: 19mm / 3/4
- Mounting Holes: 14 x 5.2mm / 3/16
- Rivets Required for Installation: 14
- Suits L0526 Backplate
