Large Recessed Butterfly Latch L925/530k

Penn Elcom Large Recessed Butterfly Latch L925/530K L925/530K

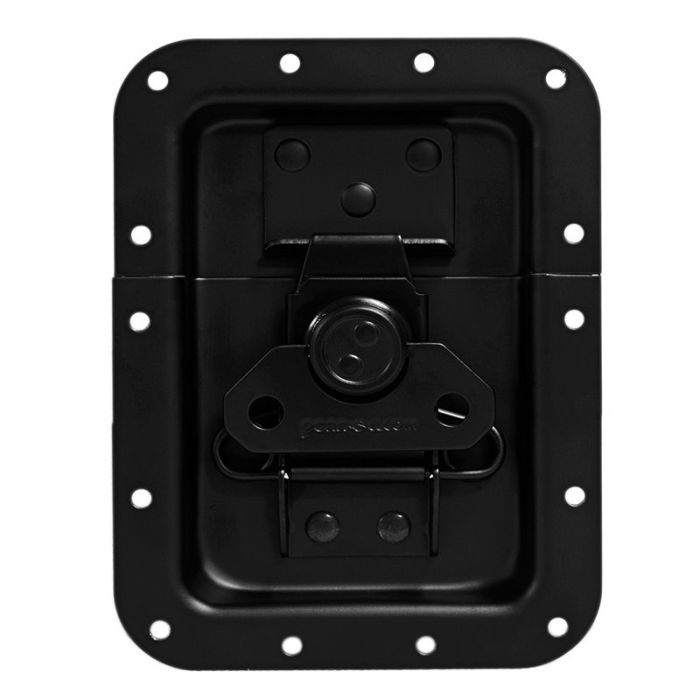

Large Recessed Butterfly Latch in Deep Plain Dish.

From Split to Hole Centre 10mm / 3/8"

Securely close your case with a Penn Elcom latch mounted in a large recessed dish. For use on large-sized cases. The black powder coating offers a long lasting protection against corrosion with a durable finish. The fixing holes are 10mm / 3/8 away from the central split of the dish making it perfect for hybrid edge extrusions.

Product Features:
- Dish Width: 127mm / 5
- Dish Height: 174mm / 6 7/8
- Dish Depth: 16mm / 5/8
- Offset: No
- Lockable: No
- Finish: Black Powder Coated
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.44kg / 0.96lb
- Maximum Working Load Capacity: 140kg / 308lb

Installation Information:

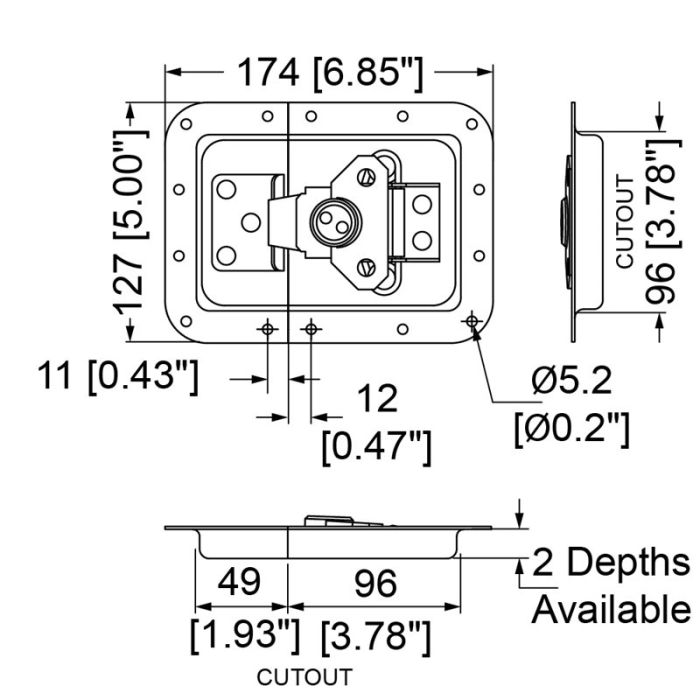

- Panel Cut-Out Size:
- Cut-Out Width: 96mm / 3 3/4
- Cut-Out Height: 96mm + 49mm / 3 3/4 + 1 15/16
- From Split to Hole Centre: 10mm / 3/8
- Mounting Holes: 14 x 5.2mm / 3/16
- Rivets Required for Installation: 14
- Suits L0526 Backplate
