Instrument Hi-end ( 1 Cond. 0,5mm + Carbon & Double Spiral Screen) 7xhp01sx

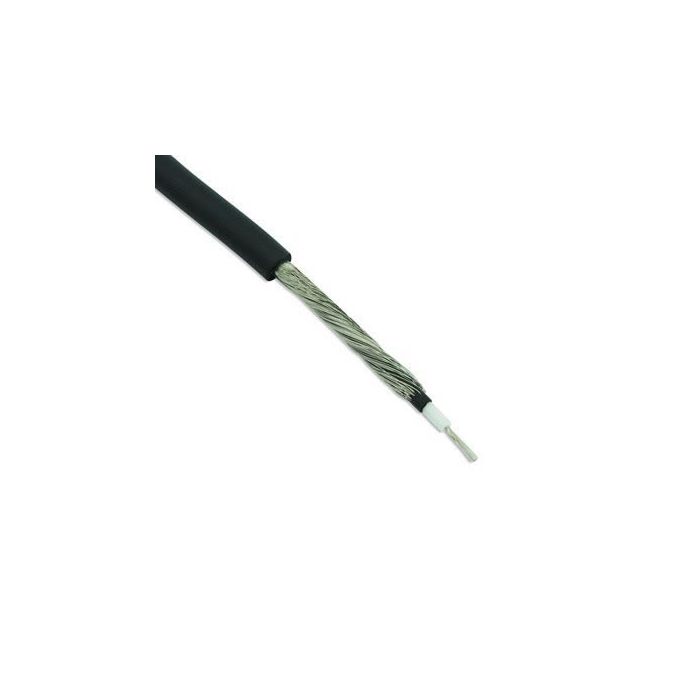

Syntax - Valentini INSTRUMENT HI-END ( 1 COND. 0,5mm + CARBON & DOUBLE SPIRAL SCREEN) 7XHP01SX CAIH05

This professional high-end unbalanced SYNTAX cable offers a very low capacitance with loss free transmission, ideal for bass, guitar, and keyboard due to the special stranding and a wire section of 0.50 mm. The sound advantages of this design are extremely fast transmission capabilities, convincing mid ranges, popping deep basses and an analytical transmission.

Brightly and dominant high frequency transmission at long paths on large stages even when are used pickups with lots of coils. A triple screen by the combination of double tinned copper spiral shielding and conductive carbon shield.

Due to the thick sturdy jacket it is very robust and strain relief, protected against cable breaks and convinces with high bending cycles. Despite the robustness it is very easy to wind, as it is made with a special PVC pigment and a fine stranding of the internal conductor.

PRICED PER METRE

Brand: Syntax
Conductor: 1 x 0.50 mm tinned copper OFC - 21 AWG 64 x 0,10 mm
Colour: Clear
Shield: conductive carbon jacket + double tinned copper wrap
External jacket: Flexible PVC flame-retardant Black colour 7.00 mm
Operating temperature: -30C to 70C
Conductor resistance: = 39.5 ohm/Km
Insulation resistance: = 1 Gohm/Km
Capacitance: 89 pF/m nominal
Operating rating: < 50 V
Voltage test: 1.5 kVdc x 1 min.
