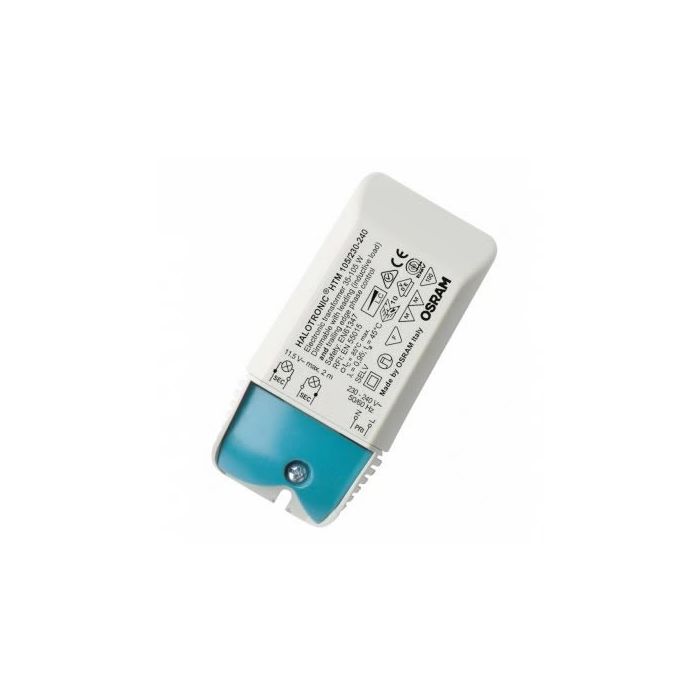

Osram Htm 105 Electronic Transformer 35-105w Dimable 4050300442334

HALOTRONIC-COMPACT - HTM, HTN - Electronic transformers for low-voltage halogen lamps

Product benefits

• Dimmable on the leading edge (without HTN) and trailing edge
• Very low power loss thanks to high efficacy
• Strain relief suitable for different cable types (HTM)
• Suitable for space-critical installation thanks to compact functional design
• Extremely compact transformer for highly space-critical installation conditions (HTN)
• Protective operation throughout the entire partial-load range for long lamp life

Product features

• Line frequency: 50/60 Hz
• RI suppression: to EN 55015 (A1: 2007)/CISPR 15, EN 55022
• Line harmonics according to EN 61000-3-2
• Immunity according to EN 61547
• Safety: to EN 61347
• Short-circuit protection, overload protection, overtemperature protection: electronically reversible
• Electrical isolation between the primary side and the secondary side
• Switching between the electronic transformer and lamp not permitted
• Energy efficiency: >= 91 % (according to ErP regulation 2012/1194/EC)

Areas of application

• Effect and accent lighting
• Living rooms
• Object lighting
• Conference rooms
• Restaurants
• Recessed and surface-mounted furniture fixtures
• Shop lighting
• Event rooms

Specifcation

• EAN: 4050300442334
• Lamp wattage: 35-105 W
• Line current: 0.41 A
• Nominal voltage: 230-240 V
• Power factor ?: 0.99
• Output voltage: 11.3/11.4 V
• Mains frequency: 50/60 Hz
• System wattage: 111.00 W
• Galvanic isolation primary/secondary: 4.00 kV
• Maximum no-load wattage: 0.41 W
• Length: 108.0 mm
• Width: 52.0 mm
• Height: 33.0 mm
• Cable cross-section, input side: 2.5 sqmm
• Cable cross-section, output side: 2.5 sqmm
• Wire preparation length, input side (cable sheath/ wire): 12 / 7.0 mm
• Wire preparation length, output side (cable sheath/ wire): 12 / 7.0 mm
• Product weight: 125.00 g
• Ambient temperature range: 0 +45 C
• Maximum temperature at tc test point: +85 C
• Design/version: Compact with cable clamp
• Dimmer: Trailing- or leading-edge phase control for inductive load dimmers
• Overload protection: Automatic reversible
• Overheating protection: Automatic reversible
• Short-circuit protection: Automatic reversiblev
• Maximum wiring length ECG/lamp: 2.0 m
• Cable types, input side: NYM 3x1.5 / H05VV-F 3x0.75 / H05VV-F 3x1.0 / H05VV-F 3x1.5 / H05VV-F 2x0.75 / H05VV-F 2x1.0 / H05VV-F 2x1.5 / H05VVH2-F 2x0.75 / H05VVH2-F 2x1.5 sqmm
• Cable types, output side: NYM 3x1.5 / H05VV-F 3x0.75 / H05VV-F 3x1.5 / H05VV-F 3x1.5 / H05VV-F 2x0.75 / H05VV-F 2x1.5 / H05VVH2-F 2x0.75 sqmm
• Dimmable: Yesv
• Dimming range: 0-100 %
• No-load proof: Yes
• Suitable for fixtures with prot. class: II
• Approval marks - approval: VDE / VDE-EMC / E1 approval
