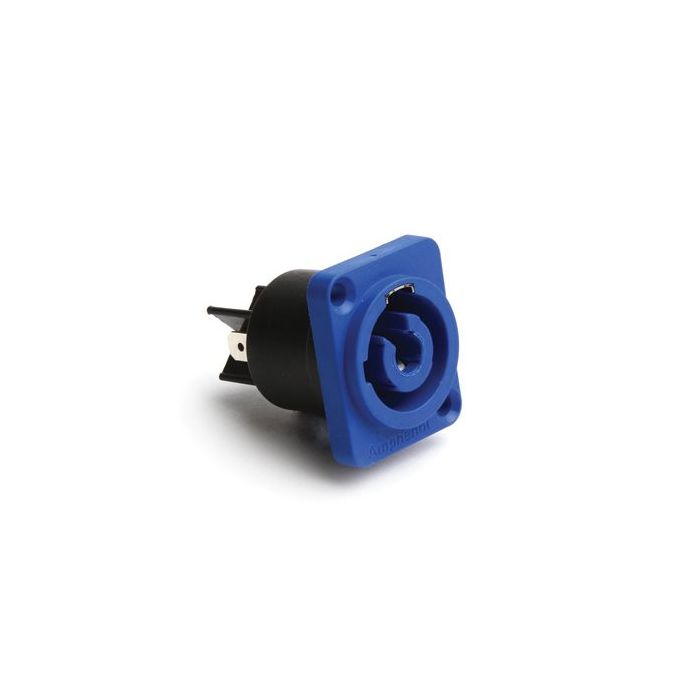

Hp 3 Pole Chassis Connector Power-in Solder Tab 3/16" Hp-3-md

Amphenol HP 3 Pole Chassis Connector Power-In Solder Tab 3/16" HP-3-MD COHP3MD

HP 3 Pole Chassis Connector, Thermoplastic Shell, Blue, Keyed For Power-In, Solder Tab 3/16"

HP Series connectors are suitable for AC power supply where a latch locking connector is required. They are rated at 25 A / 250 Vac. Connectors are keyed and colour coded for power-in (Blue) and power-out (Grey).

Features:

• Quick release, vibration resistant latch lock
• 3 pole
• Screw Terminals or Solder Tab 3/16inch
• Chuck type cable clamp
• 25A Current rating
• Thermoplastic housing
• Industry standard mating
• UL, cUL recognized components (File no. E339831)

The HP series of connectors are not designed to be HOT PLUGGEDinch and so are without BREAKING CAPACITYinch in other words, the connectors should not be connected or disconnected live or when under load.
