Neutrik Ethercon Chassis B Series Horz Pcb Mount Ruggadized Ne8fbh-s

Neutrik EtherCON Chassis B Series Horz PCB Mount Ruggadized NE8FBH-S CONE8FBHS

NE8FBH-S
The etherCON Series is a ruggadized and lockable RJ45 connector system, optimized for proaudio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. Various wiring applications and color coding are available.
The B-Series offers a space saving design and a rugged metal front plate.

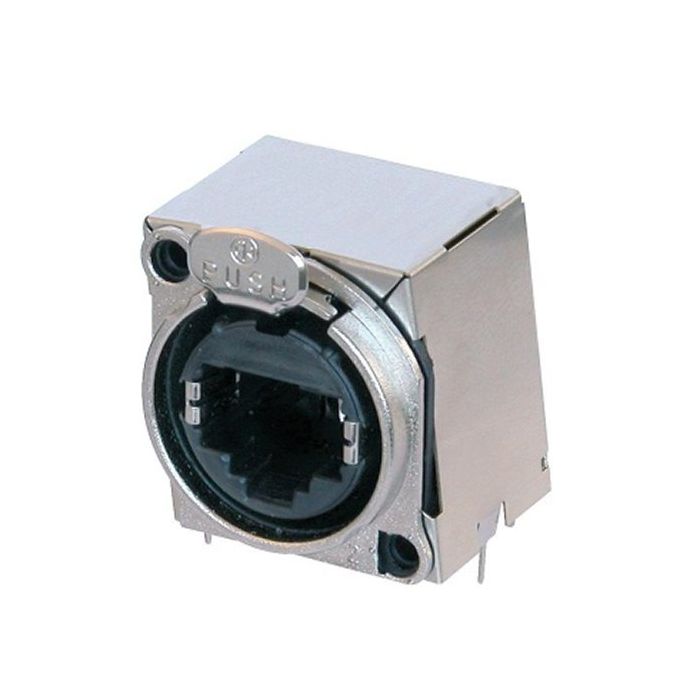

Fully shielded PCB mount RJ45 receptacle, B-series cutout with latch lock, max. panel thickness 3 mm. The Shielded EtherCon offers a closed metal housing to avoid EMI or cross talking.
Features & Benefits
Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
Approved latch lock system
Comprehensive shielding granted by completely closed metal housing
Improves EMC performance of appliance even in unmated condition
Connector is fixed onto PCB due to soldered connector housing
Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
Ground panel connection
