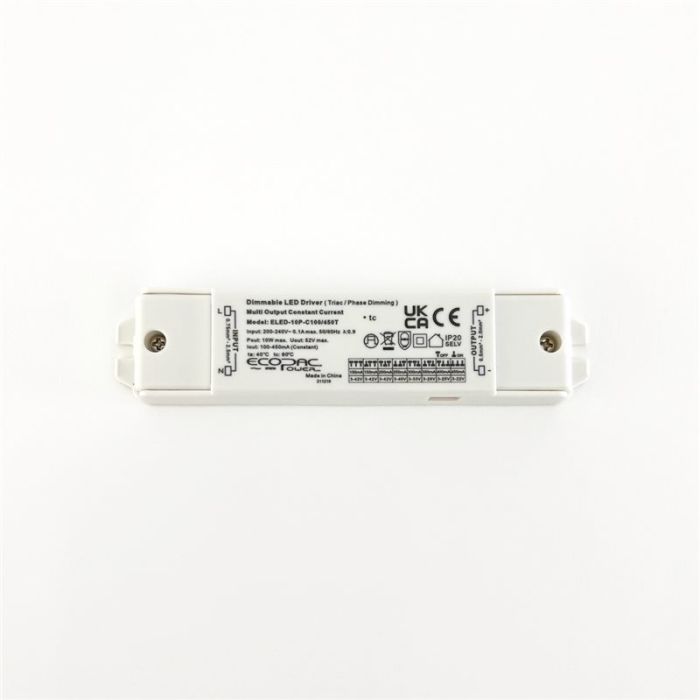

Led Driver 10w Multi-current Eled-10p-c100-450t

Ecopac UK Led Driver 10W Multi-current ELED-10P-C100-450T LEDMDCCELED10P

10W Triac (Leading & Trailing) Dimming Dip-Switch Output current LED Driver

Features:
Constant Current mode output with multiple levels selectable by dip switch
Dimming function: Triac/phase cut dimming
Work with leading or trailing edge Triac dimmer
(ON key: leading edge; 1 key: trailing edge)
AC input: 200-240VAC
Built-in active PFC function
Efficiency up to 75%
IP20 design for indoor installation
Full protection plastic housing easy installation
Protections: Short circuit/ Over load
Cooling by free air convection
Suitable for LED lighting and moving sign applications
Strong compatibility, flicker-free dimming

Technical data:
Output power: min 4.2W - max. 10W
Input Voltage: 200
240VAC
Input Frequency: 47-63Hz
Output Current: 100/150/200/250/300/350/400/450mA
Output Voltage: 3-42V
Max output voltage: 52Vdc
Inrush Current: 11A (Twidth=7.2 230VAC)
Power Factor (Typ.): 0.95
Full Load Efficiency (Typ.): 79%
AC Current (Typ.): 0.1A
Leakage Current: <0.50mA/220VAC
Protection: Short Circuit, Over Loading, Over Temperature
Protection Class: II
IP Rating: IP20
Output Length Cable: 200mm
Galvanic isolation: SELV
Weight: 0.1 Kg
Dimensions: 135 x 30 x 20 mm
Working Temperature: -40
+60DegC
Working Humidity: 20 -90% RH, non-condensing
Storage Temperature, Humidity: -40
+80DegC, 10 -95% RH
Safety Standards: EN61347-1, EN61347-2-13, UL8750
EMC Emission: Compliance to EN55015, EN61000-3-2,3 (=50% load), FCC Part 15B
EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,11, EN61547, A light industry level (surge 4KV)
