Draw Overlatch 8102

Penn Elcom Draw Overlatch 8102 8102

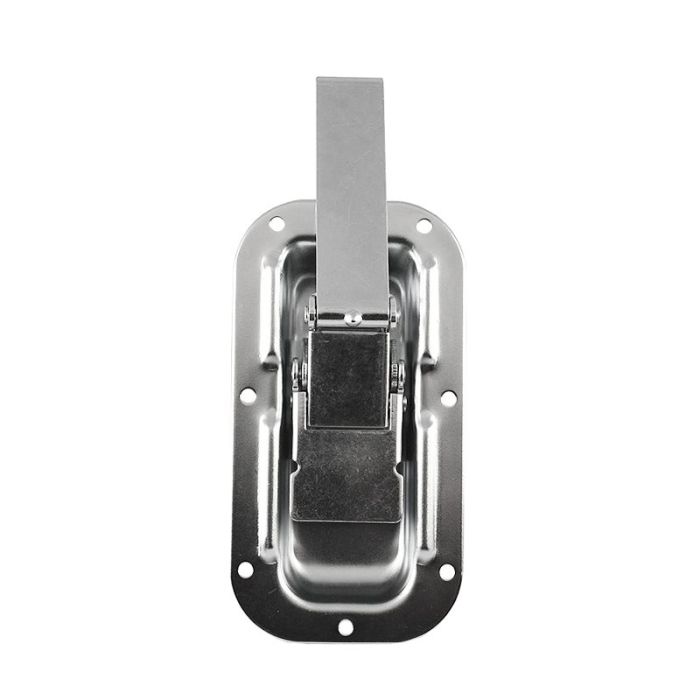

Valance Spanning Draw Overlatch in Shallow Recessed Dish with Internal Compression Springs

Securely close your case with a Penn Elcom valance spanning latch mounted in a one-part dish. This latch has a blade action which allows it to be mounted below the edge extrusion, eliminating the need to cut through the extrusion. When unlocked, the blade springs back onto the dish. The catch plate can be mounted directly onto the lids edge extrusion or onto a Lidmaker extrusion. The Zinc plating offers an excellent protection against corrosion. The protective ridges shield the latch from being accidentally hit or damaged. With a depth of only 10mm / 3/8, the shallow dish will not protrude inside the case, even when used with panels as thin as 10mm / 3/8.

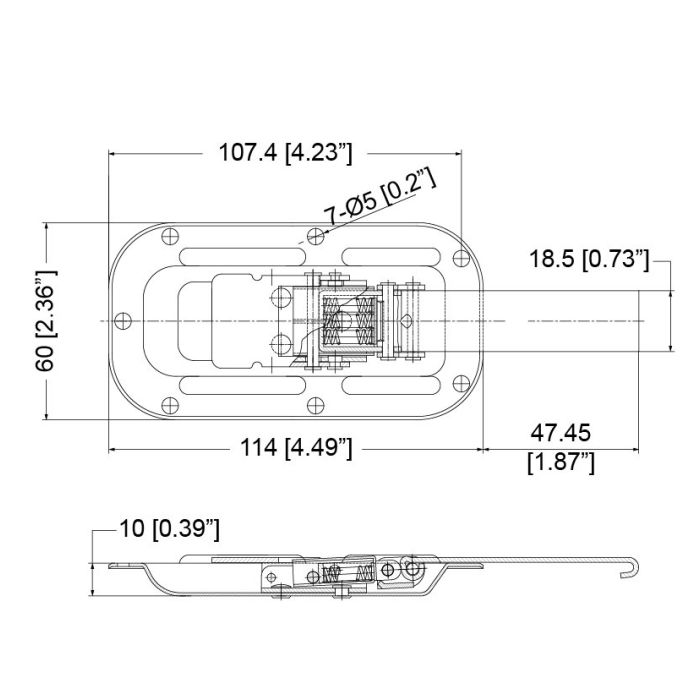

Product Features?:
- Hook Length from Dish Edge: 47.5mm / 1 7/8
- Dish Width: 60mm / 2 3/8
- Dish Height: 114mm / 4 1/2
- Dish Depth: 9mm / 3/8
- Offset: No
- Lockable: No
- Finish: Zinc
- Material: 1.2mm / 18 gauge Steel
- Weight: 0.14kg / 0.3lb

Installation Information?:
- Panel Cut-Out Size: 36mm x 94mm / 1 7/16 x 3 11/16
- Mounting Holes: 7 x 5.2mm / 3/16
- Rivets Required for Installation: 7
- Use Catch Plate 8103
