Dali Mcu Smart Potentiometer G2 Dt6/dt8 4062172224673

Osram Dali Mcu Smart Potentiometer G2 Dt6/Dt8 4062172224673 LEDDALIMCUG2

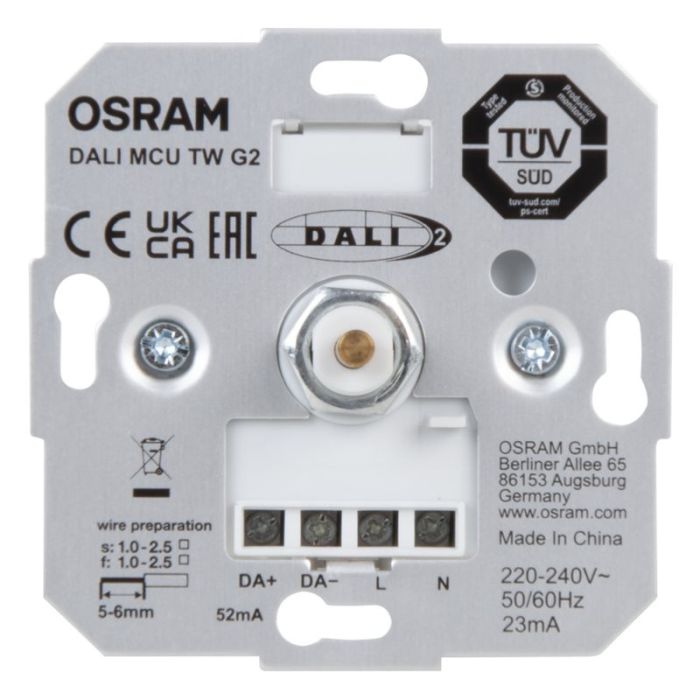

DALI MCU TW G2 | Light management systems
EAN: 4062172224673

Suitable to command both DALI Type 6 and DALI Type 8 drivers

Product family features

• Up to 4 DALI MCU TWs can be connected in parallel to set up multiple control points
• Automatic synchronization between the control points
• Cover and rotary switch in neutral white
• Length of the DALI control cable: up to 300 m

Product family benefits

• Intuitive manual dimming, switching and changing of colour temperature
• Individual setting of minimal brightness level
• Individual setting of colour temperature range

Areas of application

• Conference rooms
• Restaurants
• Shop lighting
• Private homes

Equipment / Accessories

• Suitable for up to 25 electronic control gears
• Cover and rotary knob included

Electrical data
Nominal voltage: 230 V

Dimensions & weight
Length: 71.0 mm
Width: 71.0 mm
Height: 50.0 mm
Product weight: 98.00 g

Colors & materials
Product color: White

Temperatures & operating conditions
Ambient temperature range: -20 +50 DegC

Capabilities
Dimmable: Yes
Dimming interface: DALI-2
Number of control outputs: 1
Type of installation: Integrated in flush device box

Certificates & standards
Type of protection: IP20
Protection class: II
Approval marks - approval: CE / UKCA / EAC

Logistical data
Commodity code: 853650809000

Environmental information
Date of Declaration: 11-01-2022
Primary Article Identifier: 4062172224673
Candidate List Substance 1: No declarable substances contained
CAS No. of substance 1: No CAS
Declaration No. in SCIP database: No declarable substances contained
