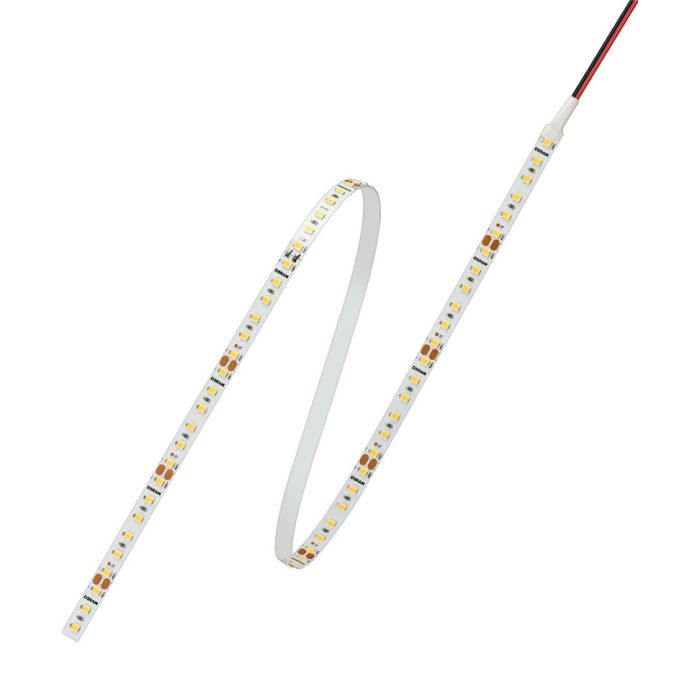

Cost Effective High Density Led Strip Bf400s-g3-827-05 5m/reel 2700k Warm White 24v 4062172231251

Osram Cost effective High Density Led Strip BF400S-G3-827-05 5m/reel 2700k Warm White 24v 4062172231251 LEDBF400SG3827

BF400S-G3-827-05

EAN: 4062172231251

Accessories available: strip-to-driver connector with 500mm cable tail

Product family benefits
Consistent white light: 3 SDCM
Color rendering index Ra: 80
Lifetime: up to 30,000 h (temperature at max. tc )
Dimmable (with suitable DALI dimming methods)
Available with protection class IP00 and IP66
Warranty: 3 years

Areas of application
Hospitality
Cabinet lighting
Signage
Architectural lighting
Wall integration

Technical Data

Electrical data
Nominal voltage: 24.0 V
Type of current: DC
Nominal wattage per meter: 3.5 W*
Rated wattage: 16.5 W
Input voltage range: 23 25 V
Accidental reverse input voltage protection up to: 24 V
*Testing based on tp=40C, one-meter data, tolerance of lumen flux is +/-10%

Photometrical data
Light color LED: White
Color rendering index Ra: 80
Luminous flux per meter: 400 lm
Luminous efficacy: 114.29 lm/W
Standard deviation of color matching: =3 sdcm
Color temperature: 2700 K
Color sensation: Warm White
Beam angle: 120D

LED module information
Number of LEDs per meter: 120
Number of LEDs per smallest unit: 6

Dimensions & weight
Length: 5000 mm
Length - smallest unit: 50.0 mm
Product weight: 85.00 g
Width: 8.00 mm
Height: 1.10 mm
Cable cross-section, input side: 0.32 mmSq

Temperatures & operating conditions
Temperature range in operation at Tc point: -20 75 DegC
Temperature range at storage: -30 80 DegC

Additional product data
ID of contained light source: LS_SHZ_600903

Capabilities
Dimmable: Yes
With end piece: No
Lowest bending radius: 20 mm
With connection set: Yes
Self-adhesive: Yes

Certificates & standards
Standards: CE
Energy efficiency class of the contained light source: F
Type of protection: IP00

Logistical data
Commodity code: 853951000000

Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 23-06-2022
Primary Article Identifier: 4062172231251
Candidate List Substance 1: No declarable substances contained
Declaration No. in SCIP database: No declarable substances contained
