Coolrac Flight Case Exhaust Fan 80mm / 3" Ft80-q-fc

Penn Elcom CoolRaC Flight Case Exhaust Fan 80mm / 3" FT80-Q-FC FT80-Q-FC

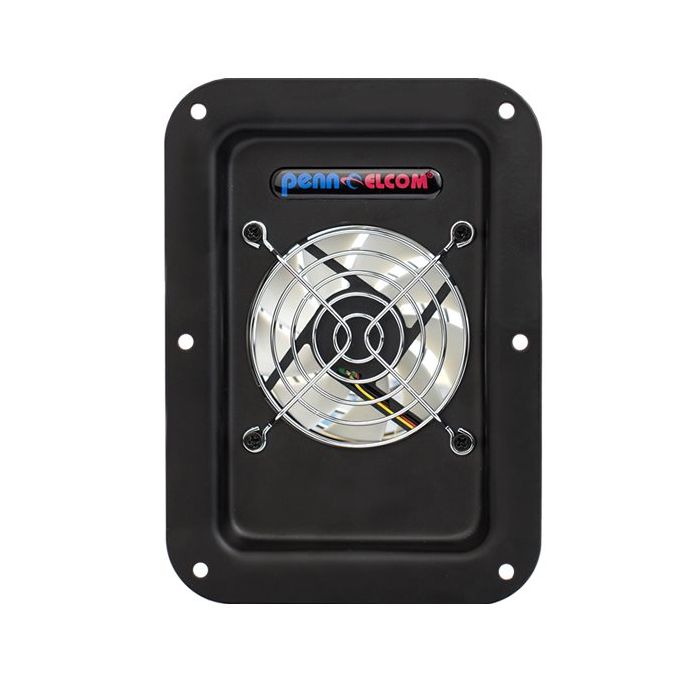

CoolRaC Flight Case Exhaust Fan 80mm/ 3"

This quiet exhaust fan unit has been designed for fitting into flight case racks and enclosures; especially where the back is enclosed and the hot air is not being expelled.

These types of situations invariably cause thermal failure, as any in-board fans are just recycling hot air. These exhaust fans are easily mounted into any style of flight case, using the same technique as fitting a socket or handle dish. They can be mounted either horizontally or vertically.

Thermal Control:

A thermal sensor accessory, the CRC-TEMP can be Plugged into the TEMP socket. It is set to operate at 40 degrees and will reset at 30 degrees, + or - 2 degrees.

Technical Specifications:

• Low Noise 22.5dBA (0.3 Sone)
• 28CFM (47.6m3/h) @2000 RPM
• High Static Pressure
• 1 x 9 Bladed 80mm Fan
• 12V DC - 200mA
• 2 x DC In/Out Sockets
• Temperature Sensor Socket
• DC in/out sockets
• 500mA world wide universal PSU supplied
• Mounting Holes align with attached fitting template
• Combined Weight 400 grams
• Fluid Bearings = 2 Year Limited Warranty
