White 5m LED Dotless Cob Strip 5w 4k 24v Flscb1- 0n1cb11

fossLED Cool/Neutral White 5m/reel COB Strip (Dotless) 5w 4k 24v FLSCB1- 0N1CB11 LEDFLCOB5W4K

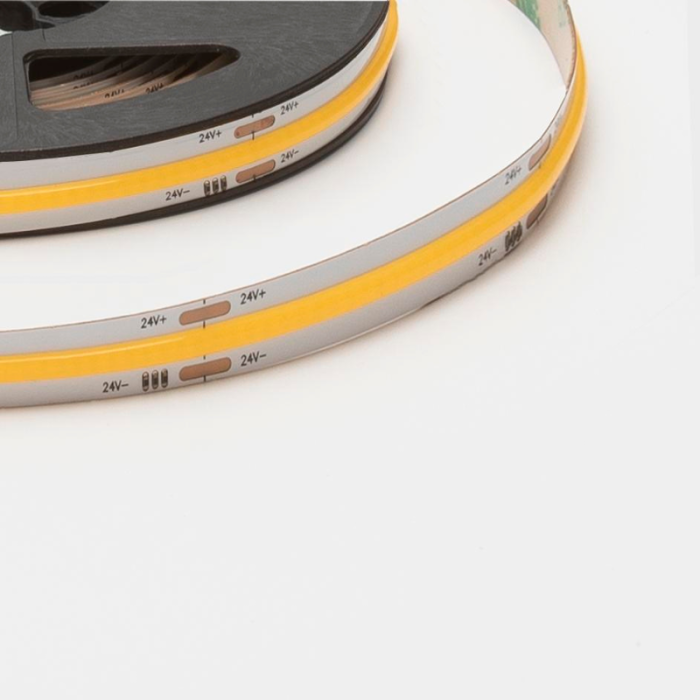

The FossLED COB Series Strips are designed to offer a dotless Linear finish in all applications.

This 5W per meter model features 480 SMD LEDs on a 2oz PCB board for a durable finish. Easy mounting thanks to added strength (3M 300LSE) self-adhesive. Single binning for color consistency

Each reel comes supplied with a short cable tail soldered at one end from the factory. strip-to-strip joiner

Electrical data

• Nominal voltage: 24.0 V
• Type of current: DC
• Nominal wattage per meter: 5.0 W
• Input voltage range: 23 25 V

Photometrical data

• Light color LED: White
• Color rendering index Ra: >92
• Luminous flux per meter: 500 lm
• Luminous efficacy: 100 lm/W
• Standard deviation of color matching: =3 sdcm
• Color temperature: 4000 K
• Colour Sensation: Cool/Neutral White

LED module information

• Number of LEDs per meter: 480
• Number of LEDs per smallest unit: 48

Dimensions and weight

• Length: 5000 mm
• Length - smallest unit: 50.0 mm
• Width: 8.00 mm
• Product weight/reel: 120 g

Temperatures and operating conditions

• Temperature range in operation at Tc point: -25 +80 DegC
• Ambient temperature range: -25 +45 DegC
• Temperature range at storage: -25 +80 DegC

Lifespan

• Nominal lamp life time: 50000 h
• Lumen main.fact.at end of nom.lifetime: L80

Capabilities

• Dimmable: Yes
• Lowest bending radius: 20 mm

Certificates and standards

• Standards: CE/UK-CA/RoHS
• Type of protection: IP20
• Energy efficiency class of the contained light source: F
• Commodity code: 8539510000
