Combo Dmx Cable And Mains Power 3x1,5 In One Cable

First-Av.co.uk COMBO DMX CABLE ( 2 COND. + DRAIN + ALUM/FOIL SCREEN) + MAIN POWER 3x1,5 7XD1F315SX CADMXP

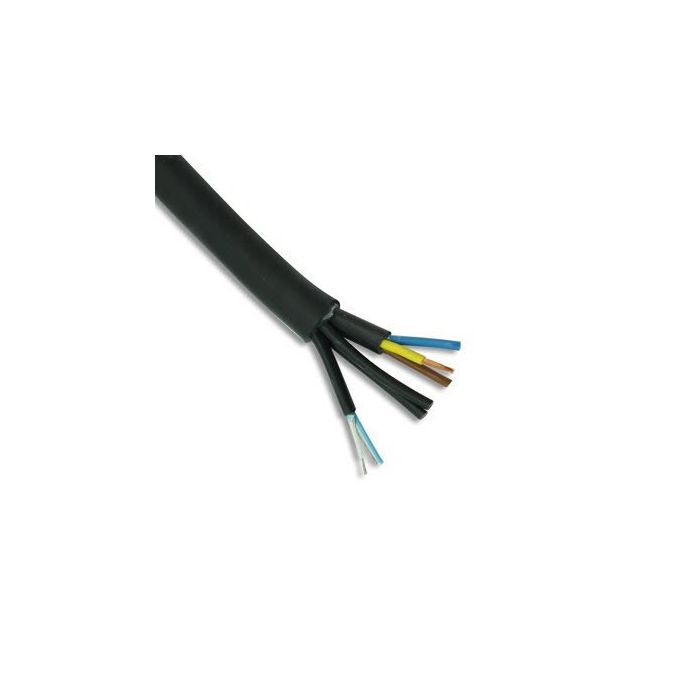

The SYNTAX? POWER+DMX has a main power line with a wires diameter of 3 x 1.5 mm and one DMX 512 twisted pair cable. The digital signal pair is shielded with an aluminium/polyester foil screen and covered with a black PVC jacket. The power line is equipped with its own PVC jacket for added safety in compliance with the I.E.C. regulation. Suitable for parallel controls for light mixing boards via power line and DMX signal via digital cable. Also used for analogic audio devices when power supplyed. The external black PVC jacket flame-retardant is very flexible, trampling-proof, impact absorbing and water-proof.
Overall diameter 14.5 mm. Operating temperature -30? to 70? C.
DIGITAL
Nominal Impedence: 1-4 Mhz 110 ohm
External jacket: Black PVC ? 4,3 mm flame-retardant
Conductors jacket: red/black Foam - Skin ? 1,4 mm
Conductors: Bare OFC 24 AWG 19 x 0,12 mm
Drain wire: tinned OFC 24 AWG 7 x 0,20 mm
Screen: aluminium/polyester foil 100% coverage
D.C.R. conductors: <90 ohm/km
D.C.R. shield: <70 ohm/km
Capacitance cond./cond.: 1Khz 40 nF/km
Capacitance cond./shield: 1Khz 80 nF/km
POWER
External jacket: Black PVC ? 7,5 mm flame-retardant
Conductors: 3 x bare OFC 15 AWG 82 x 0,15 mm - 1.5 mm?
Conductors jacket: Brown, Blue, Yellow-Green PVC ? 2,5 mm twisted

Priced per metre.
