Combi Cable 2 x Cat6 4 X AESEBU 7YLN2DG4 CAS2C6DIG4 By Syntax - Valentini
Syntax - Valentini Combi Cable 2 x Cat6 4 X AESEBU 7YLN2DG4 CAS2C6DIG4

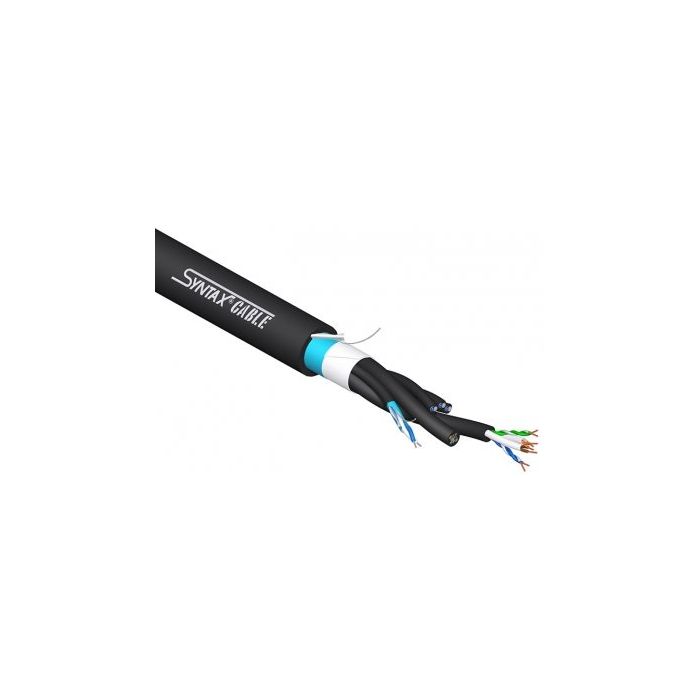

The hybrid cable Syntax CAS2C6DIG4 perfectly meets the connectivity requirements for the management of Ethernet data signals up to 250MHz frequency and for balanced digital audio lines distribution. Its composition consists of two Cat6 cables and four AES/EBU lines and is suitable to connect many of the new audio, video and lighting digital systems, whenever a clean, easy and fast cabling is required.
In addition to the individual shielding on each AES/EBU cable, the overall shield with drain wire ensures protection from external noise (EMI) for Cat6 lines, greatly improving the return loss value, which is usually critical with standard S/FTP shielding.
2 x CAT6
Conductors: Solid bare OFC - Dia=0,57mm
Conductors jacket: Polyolefin Foam - Dia=1 mm
Color code: Comply EIA/TIA 568
Jacket: Black PVC flame-retardant Dia=6,2 mm
Resistance of conductors: < 75 O/Km
Insulation resistance: > 5 GO/Km
Capacity between conductors: 48 nF/Km
Impedance from 1 to 250MHz: 100O +/- 15%
4 x DIGITAL
Conductors: tinned OFC 24 AWG - 28 x 0,10 mm
Conductors jacket: white/blue gas injected foam - Dia 1,4 mm
Drain wire: tinned OFC 24 AWG - 7 x 0,18 mm
Screen: aluminium/mylar foil 100% coverage
Nominal Impedence: 1-4 Mhz 110 O/100 mt
External jacket: Black PVC flame-retardant Dia=3,4 mm
D.C.R. conductors: <86 O/Km
D.C.R. shield: <70 O/Km
Capacitance cond./cond.: 1Khz 37 nF/Km
Capacitance cond./shield: 1Khz 57 nF/Km
-------------------------------------------------------------------------
Overall jacket: matt Black PVC flame-retardant Dia=17,5 mm
Overall screen: aluminium-mylar foil 100% coverage
Drain wire: tinned OFC 24 AWG 7 x 0,18 mm
Operating temperature: -30Deg +70Deg C
Brand | Syntax - Valentini |
---|---|
Manfacturer Code | CAS2C6DIG4 |
