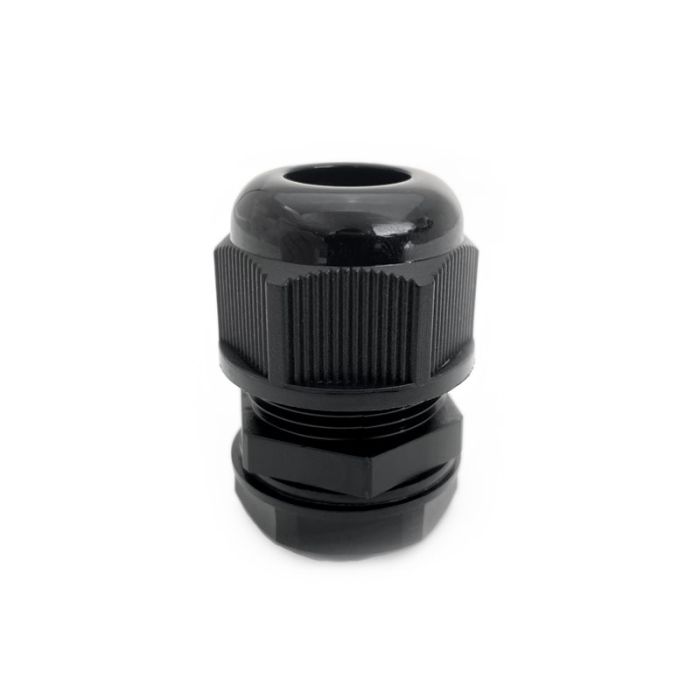

Cable Gland For 8-14mm Cable

Penn Elcom Cable Gland for 8-14mm cable CG14WITHNUT

Cable Gland for 8mm to 14mm cables. Includes a lock nut, washer, body, seal and sealing nut.

Manufacturer : Penn Elcom
Cable accessories type: Cable Gland
Gland thread : M20 x 1.5
Sealing: IP68
Cable clamp range: 10mm-14mm / 3/8inch -9/14inch
Length : 46mm Complete with nut
Material: Nylon

Our CG/CGS series of single compression Nylon Cable Glands provide versatile support and excellent protection for your cables, helping to protect them from the elements and damage, whether in indoor or outdoor environments.

Easy to install, Penn Elcom has produced cable glands in many sizes to fit multiple applications such as stage boxes, adaptor plates and panels that require long-lasting shielding and strain relief. Our cable glands can be used with cable connections via knockouts, fixing holes or threads.

The CG14WITHNUT is manufactured with a rubber washer and ring insert designed to ensure that the CG/CGS becomes IP rated when used, holding cables between 10mm to 14mm in its cable clamp range with a thread diameter of 20mm.
