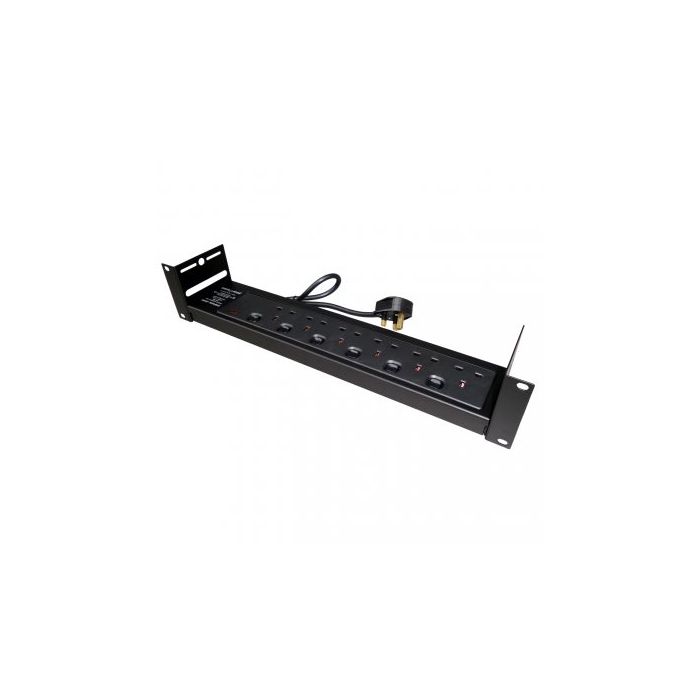

6 Way Rack Mount Pdu With Individually Switchable Outlets Pdu6sw

6 Way Rack Mount PDU with Individually Switchable Outlets

The PDU6SW Power Distribution Unit, with its individually switchable 6 outlets of 13A maximum combined load, has been designed to provide a versatile hook-up for the distribution of AC power. 6 separate switches allow racks to be powered up or isolated individually, being the most suitable to power separated multimedia racking applications.

The Transient Voltage Surge Suppression (TVSS) protects rack applications against small but frequent electrical surges caused by simultaneous operation of large equipment. Combine with 13A fuse and Lightning Strike protection, equipment would stay safe and functional even after severe voltage spikes from unexpected lightning and utility accidents.

The PDU6SW also has built-in power line filter for noise filtering.

Technical Specifications:

• Circuit breaker: 13A
• Max. A/C Output: 13A Current
• Power input: 13A-250V PLUG (UK1-13P), BS 1363 A TYPE G on a 1M lead
• Dimensions 30 x 88.5 x 430mm (483mm/19 overall)
• Output: 6 x Individually Switched 13A-240V (UK1-13R) BS1363A Type G Shuttered Sockets
• Nominal Voltage: 230V
• Usable Voltage: 220/240V 50/60Hz
• Weight: 1.4kg/3.09lbs
