6 Core Flat 20awg Bck/yel/gr/red/blue/wh Stranded Copper Ca6f20

Penn Elcom 6 Core Flat 20AWG Bck/Yel/Gr/Red/Blue/Wh Stranded Copper CA6F20 CA6F20

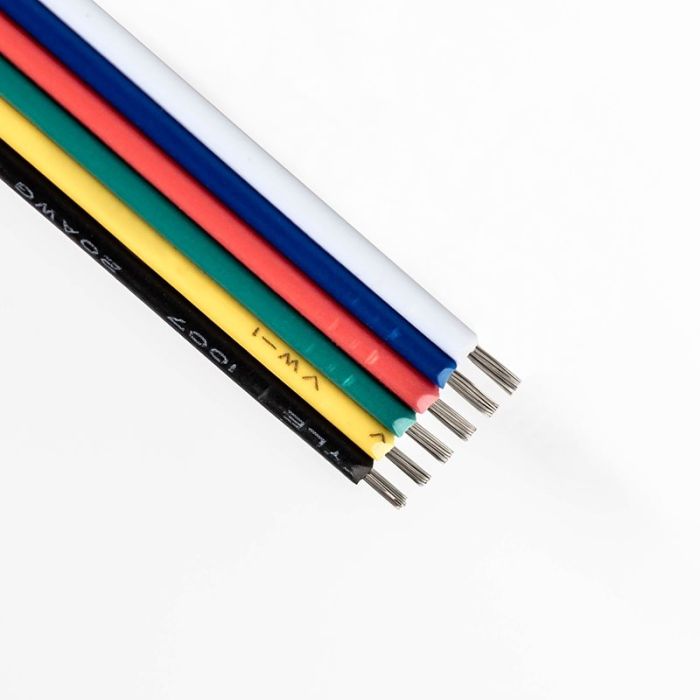

6 Core Flat 20AWG Black / Yellow / Green / Red / Blue / White Stranded Copper 300V Cable

PRICED PER METER

Penn Elcom CA6F20 is a low voltage flat power cable; cables pull apart for quick separation, polarity is easily identifiable for DC applications.

Product Benefits:

Ideal for use with RGBTW LED flex (also called RGBCCT flex)
Easy to solder directly to LED pad or extend existing cable tail
Tinned Copper conductors
Black + YGRBW insulation for fast polarity identification

PVC Insulation Conductor: 20 AWG (0.42 sqmm)
No. of Conductors: 6
Conductor structure: 21/0.16 AWG/mm
Insulation Nominal Wall: 0.47 mm
Nominal outer diameter: 1.8/9 mm
Temperature Rating: -30 to +80 Degrees
Voltage (AC/DC): 300 V
Current Rating: 3.4 A
