Penn Elcom 5U 19-inch Rack Drawer 485mm – Lockable Tour Grade

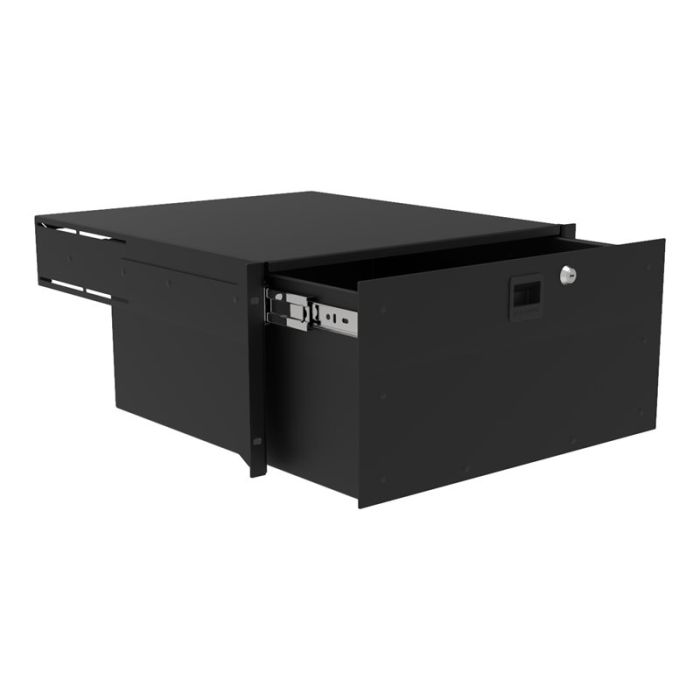

Penn Elcom 485mm Deep, 5U Tour Grade 19-inch Rack Drawer R2293-18-5UK

The Penn Elcom R2293-18-5UK is a 5U tour-grade rack drawer designed for professional 19in rack enclosures. Built from heavy-duty steel, it features a 485mm depth, slam latch, key lock (with 2 keys), and reinforced rack ears for rugged use. Perfect for AV, broadcast, and touring equipment, this drawer offers M25 and M40 cable gland knock-outs at the rear for easy wiring. Rear support brackets are included for stability during transport. The flat front panel saves space, while the drawer supports up to 36kg. A secure, practical solution for managing gear in road cases and permanent installs alike.

485mm / 18inch Deep, 5U Tour Grade Heavy Duty Rack Drawer with Slam Lock and Key Lock

Key Features & Benefits

• Tour Grade / Heavy Duty Rack Drawer
• With Space-Saving Flat Front Panel
• Reinforced Rack Mounting Ears
• M25 / M40 Cable Gland Knock-Outs for Cable Access at the Rear
• Rear Support Brackets Included.
• With Slam latch and Keylock
• Comes with 2 keys

Technical Information:

• Rack Units: 5U
• Weight: Coming Soon
• Weight Capacity: 36kg / 79.37lb
• Material: Steel

External Dimensions:

• External Depth: 286.5mm / 11.28inch
• External Width: 482.6mm / 19inch
• External Height: 221.8mm / 8.73inch

Internal Dimensions:

• Internal Depth: 275mm / 10.83inch
• Internal Width: 409mm / 16.1inch
• Internal Height: 208mm / 8.19inch

Replacement Slam Latch available 3232-SLAM-LOCK
