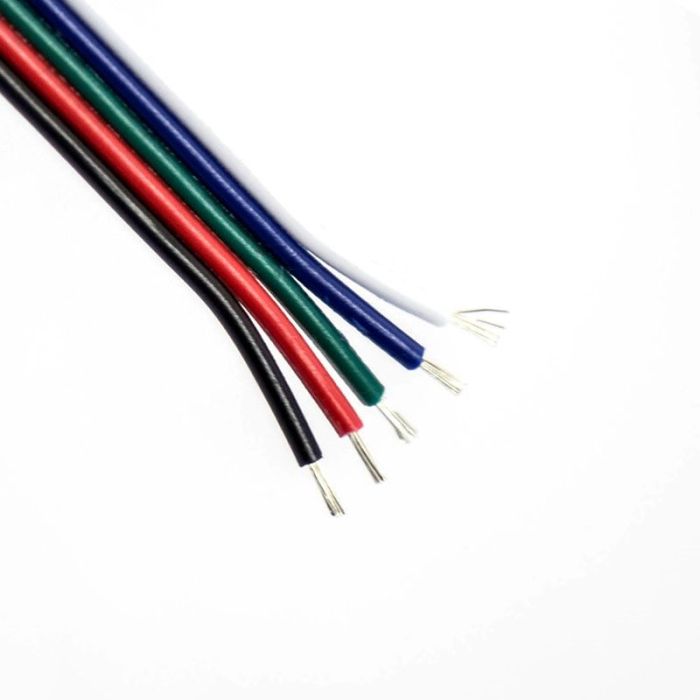

5 Core Flat 20awg Bck/red/gr/blue/wh Stranded Copper Ca5f20

Comus 5 Core Flat 20AWG Bck/Red/Gr/Blue/Wh Stranded Copper CA5F20 CA5F20

5 Core Flat 20AWG Black/Red/Green/Blue/White Stranded Copper 300V Cable, CA5F20 is a low voltage flat power cable; cables pull apart for quick separation, polarity is easily identifiable for DC applications.

PRICED PER METER

Product benefits: Ideal for use with RGBW LED flex, Easy to solder directly to LED pad or extend existing cable tail.

• Tinned Copper conductors
• Black + RGBW insulation for fast polarity identification.
• PVC Insulation Conductor: 20 AWG (0.42 sqmm)
• No. of Conductors: 5
• Conductor structure: 21/0.16 AWG/mm
• Insulation Nominal Wall: 0.47 mm
• Nominal outer diameter: 1.8/9 mm
• Temperature Rating: -30 to +80 Degrees
• Voltage (AC/DC): 300 V
• Current Rating: 3.4 A
