4m Furniture/joinery Profile 19mm Wide With Internal Angle Mount Ledal42m4

Penn Elcom 4m Furniture/Joinery Profile 19mm wide with internal angle mount LEDAL42M4 LEDAL42M4

SHIPPING ONLY WITHIN UK!

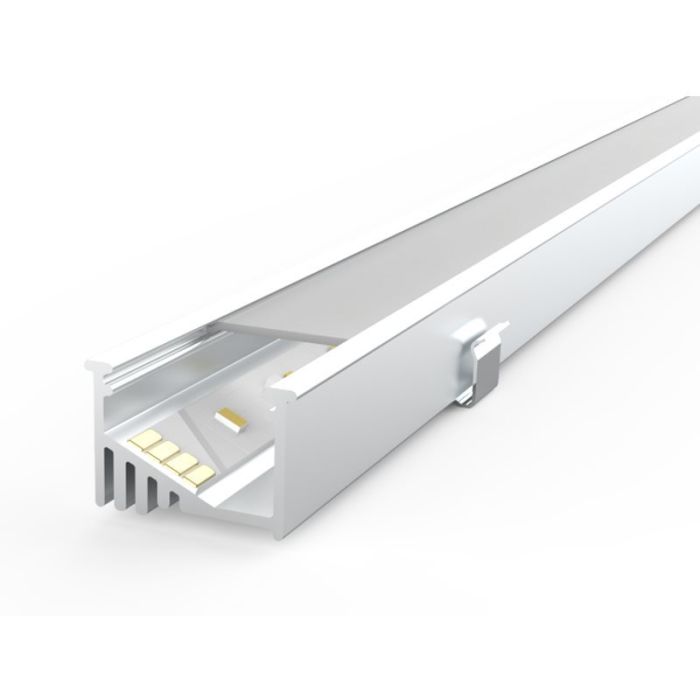

Recessed aluminium extrusion with an internal angle mount suitable for LED strips not wider than 12mm. The fins underneath the base offer additional cooling.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 5W COB FossLED strips in 2700K Warm White or 4000K Cool/Neutral White

Included in the KIT:

LEDAL42A1M - 1M anodized aluminium extrusion
LEDAL42MC1M - 1M milky white cover
LEDAL42EC - 1x White End Cap without hole
LEDAL42EC - 1x White End Cap with hole for cable entry
LEDAL42MB - 8x Metal Bracket for surface mounting

Other options available:

LEDAL42 - 1M anodized version (grey)
LEDAL42M2 - 2M anodized version (grey)
LEDAL42M3 - 3M anodized version (grey)
LEDAL42B - 1M Black version
LEDAL42M2B - 2M Black version
LEDAL42W - 1M White version
LEDAL42M2W - 2M White version
LEDAL42M3BB - 3M Black Base & Black Cover version

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 12mm

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Kitchen lighting;
Strip lighting;
Suspended lighting;
Anywhere LED Flex or an LED module needs extra support.

Specifications:

Height: 12.5 mm
Length: 4000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Top): 21 mm
Width (Base): 19 mm
Width (Internal): 13.8 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Slide in

LED shown in images for illustration purposes and is not included in profile
