4m Corner Aluminium Profile, Ledal03 Kit For 10mm Led Strips

Penn Elcom 4m Corner Aluminium Profile Ledal03 Kit for 10mm Led strips LEDAL03M4

Aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED strips. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

Included in the KIT:

• LEDAL03A4M - 4M anodized aluminium extrusion
• LEDAL03MC4M - 4M white milky cover
• LEDAL03EC - End Cap without hole
• LEDAL03ECH - End Cap with hole for cable entry
• LEDAL03MB - 8 x mounting brackets

Other options available:

• LEDAL03 - 1M anodized version (grey)
• LEDAL03M2 - 2M anodized version (grey)
• LEDAL03M3 - 3M anodized version (grey)
• LEDAL03B - 1M Black version
• LEDAL03M2B - 2M Black version
• LEDAL03W - 1M White version
• LEDAL03M2W - 2M White version
• LEDAL03CB - 90Deg Corner Joining Bracket (Inner corner)
• LEDAL03JB - In-line Joining Bracket (join any 2 lengths of extrusion)

Features:

• Aluminium anodized track for LED Flex or LED modules
• Low weight
• Easy and fast assembly and connection
• Suitable for LED strips not wider than 10 mm

Advantages:

• Excellent heat sink providing long life and reliability for LED
• Easy installation of the LED Flex or modules
• 1 year Warranty

Application area:

• Edge lighting
• Strip lighting
• Cove lighting
• Anywhere LED Flex or an LED module needs extra support

Additional information:

• Height: 16 mm
• Length: 4000 mm
• Material: 6063 anodized aluminium
• Width (Internal): 10 mm
• Base thickness: 0.8 mm
• Cover material: PC

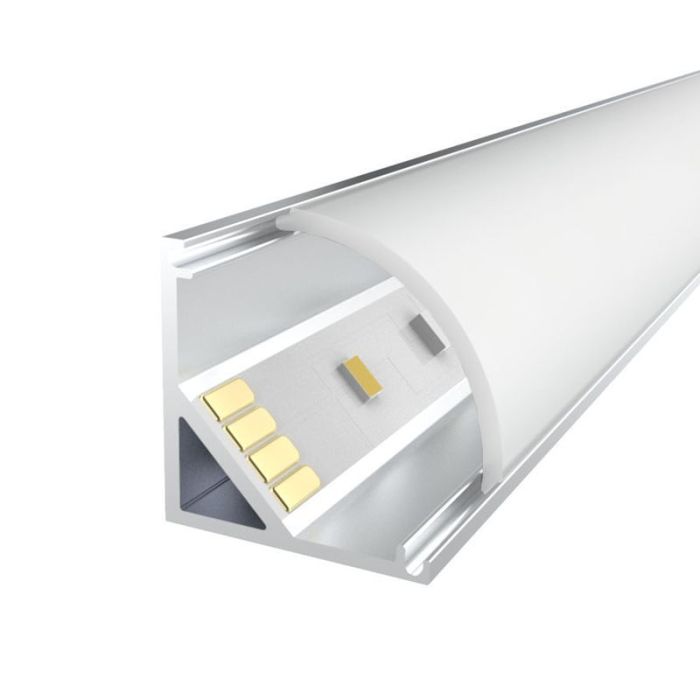

LED shown in images for illustration purposes and is not included in profile
