3u Rack Fan Panel - Double Fans Fp02-q-3u

Penn Elcom 3U Fan Panel - Double Fans FP02-Q-3U FP02-Q-3U

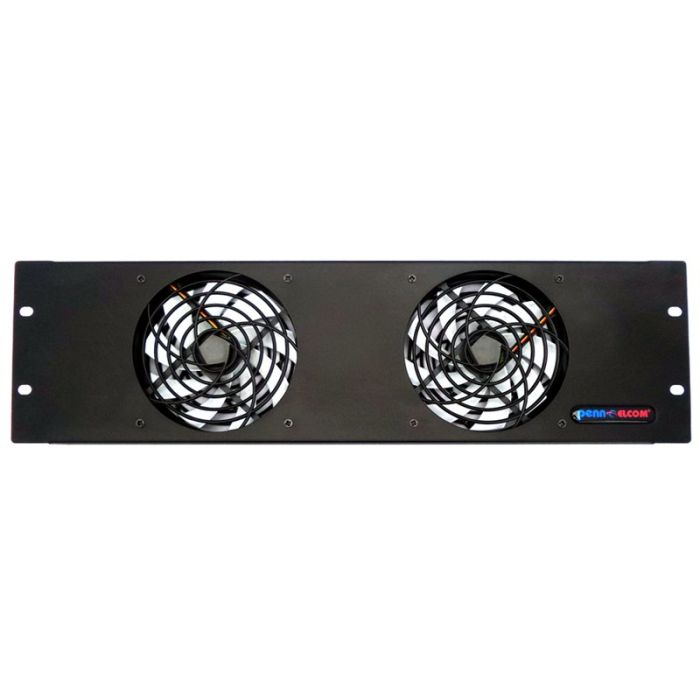

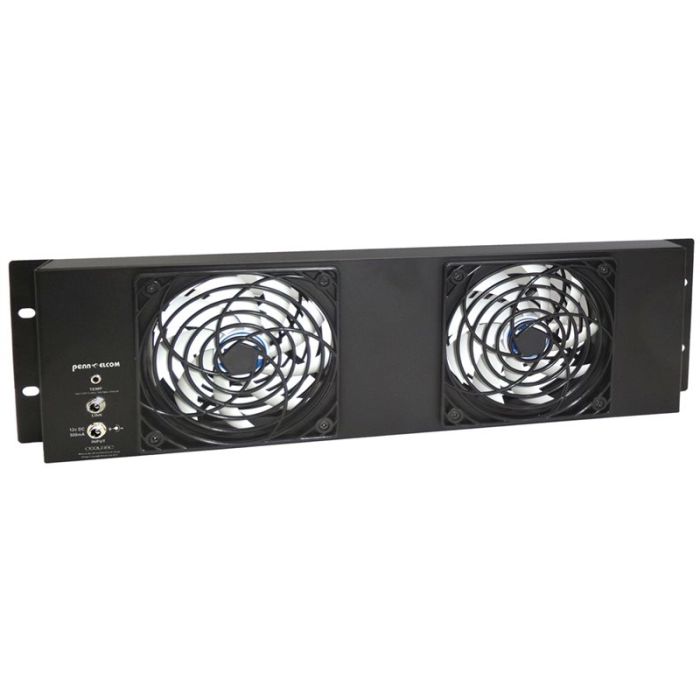

3U Fan Panel - Double Fans

3U low noise heat extraction unit. This unit is designed to be fitted to the front or back of a 19 inch rack to extract hot air. Each unit is powered using a 12V DC input. A thermal sensor CRC-TEMP plug in is also available as an optional extra.

The fan units have a low nose rating of 22.5dBA and are can move 200CFM (336m/h). 2 x DC In/Out Sockets. Temperature Sensor Socket. DC in/out sockets. 500mA world wide universal PSU supplied.

Technical Specifications:

• Low Noise 22.5dBA (0.3 Sone)
• Air movement: 200CFM (336m 3/h) @1,350RPM
• Dimensions: 483mm x 133.4mm x 55mm / 19.02" x 5.25" x 2.17"
• 2 x 9 Bladed 120mm Fans
• High Static Pressure
• Power: 12V DC - 500mA / 2 x DC In/Out Sockets
• 500mA universal PSU supplied
• Fluid Bearings = 2 Year Limited Warrantee

These extractor panels can be controlled by our CRC-TEMP Standard Fixed 40DegC (104DegF) thermal sensor. Or they can be Digitally Controlled by our FT-DTC 1U Rack Mounting Thermostatic Controller. Use AF-F12 Magnetic Fan Dust Filter Covers.
