3m Ledal07 Kit For 12mm Deep Aluminium Profile Ledal07m3

Penn Elcom 3m Ledal07 Kit for 12mm Deep Aluminium Profile LEDAL07M3 LEDAL07M3

Aluminium track from Penn Elcom LED to be used with Penn Elcom or OSRAM LED Strips or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL07A3M - 3M anodized aluminium extrusion
LEDAL07DC3M - 3M opal cover
LEDAL07EC - End Cap without hole
LEDAL07ECH - End Cap with hole for cable entry
LEDAL07MB - 6 x mounting brackets

Features:

+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection.

Advantages:

+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application Areas:

+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other Options Available:

LEDAL07B - Black version
LEDAL07W - White version
LEDAL07M2 - 2M anodized version (grey)

Suitable for LED strips not wider than 11 mm.

Height: 12 mm
Length: 3000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal): 11.2 mm
Width (External): 16 mm
Base thickness: 1.1 mm
Cover material: PC

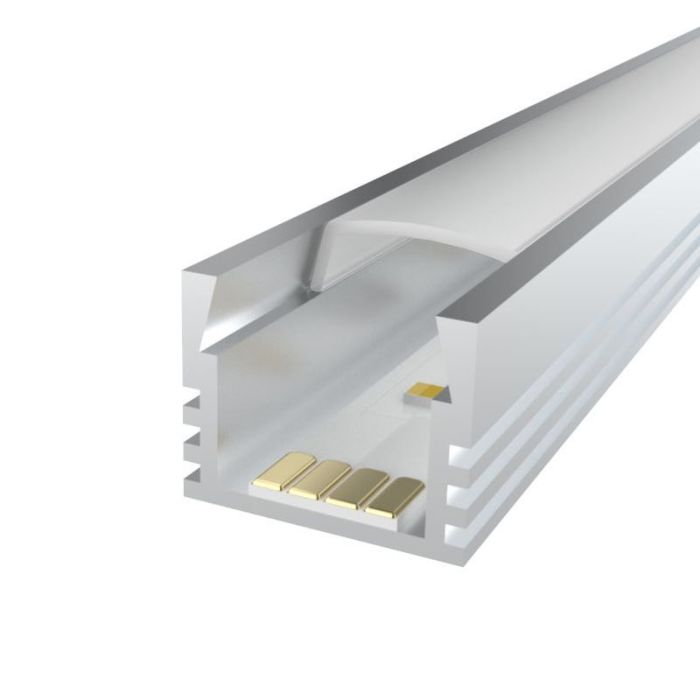

LED shown in images for illustration purposes and is not included in profile
