3m Shallow Aluminium Profile For LED Stips, Ledal06m3

Penn Elcom 3m Ledal06 Kit for 6mm Slim Aluminium Profile LEDAL06M3

Aluminium track from Penn Elcom LED to be used with Penn Elcom or OSRAM LED Strips or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

• LEDAL06A3M - 3M anodized aluminium extrusion
• LEDAL06MC3M - 3M milky cover
• LEDAL06EC - End Cap without hole
• LEDAL06ECH - End Cap with hole for cable entry
• LEDAL06MB - 6 x mounting brackets

Features:

• Aluminium anodized track for LED Flex or LED modules
• Low weight
• Easy and fast assembly and connection.

Advantages:

• Excellent heat sink providing long life and reliability for LED
• Easy installation of the LED Flex or modules
• 1 year Warranty.

Application Areas:

• Edge lighting;
• Strip lighting;
• Cove lighting;
• Anywhere LED Flex or an LED module needs extra support.

Other Options Available:

• LEDAL06 - 1M grey anodized aluminium KIT
• LEDAL06M2 - 2M grey anodized aluminium KIT
• LEDAL06B - 1M black KIT
• LEDAL06M2B - 2M black KIT
• LEDAL06W - 1M white KIT
• LEDAL06M2W - 2M white KIT

Suitable for LED strips not wider than 11mm.

Specifcations

• Height: 7 mm
• Length: 3000 mm
• Material: 6063 anodized aluminium
• Warranty: 1 Yr
• Width (Internal): 11.2 mm
• Width (External): 15.2 mm
• Base thickness: 1.1 mm
• Cover material: PC

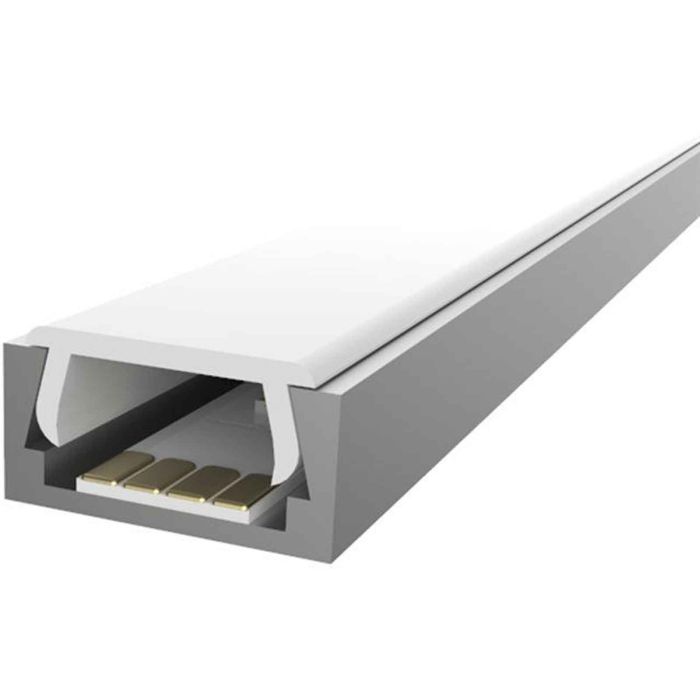

LED shown in images for illustration purposes and is not included in profile
