3m Kit 21mm Ceiling Light Aluminium Profile Ledal09m3

Penn Elcom 3m kit 21mm Ceiling Light Aluminium Profile LEDAL09M3 LEDAL09M3

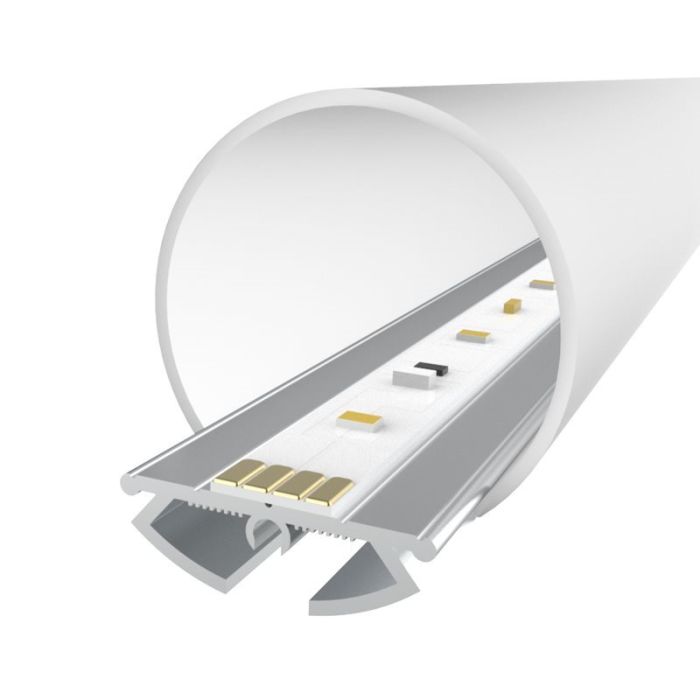

Aluminium track from Penn Elcom to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT
LEDAL09A3M - 3M anodized aluminium extrusion
LEDAL09DC3M - 3M diffuse cover
LEDAL09EC - End Cap without hole for cable entry
LEDAL09ECH - End Cap with hole

Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 21 mm

Advantages:
+ Excellent heat sink providing long life and reliabilityfor LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other options/accessories available:
LEDAL09B - 1M Black version
LEDAL09W - 1M White version
LEDAL09 - 1M anodized version (grey)
LEDAL09M2 - 2M anodized version (grey)
LEDAL09SC - Suspension cable (pair)

Suitable for the Flex strips not over 21 mm or for 2 x 10 mm.

Height: 30 mm
Cover diameter: 28 mm
Length: 3000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal): 21 mm
Base thickness: 1.1 mm
Cover material: PC
