LED Profile, 3m Kit 19mm Aluminium Corner ,Ledal11m3

LED 3m Kit 19mm Aluminium Corner Profile LEDAL11M3

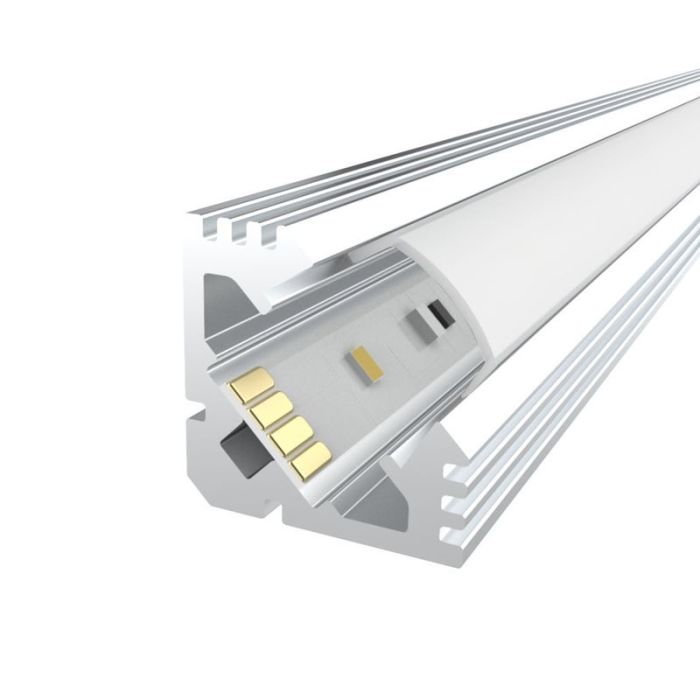

The Penn Elcom LEDAL11M3 is a professional-grade aluminium corner profile kit for LED strip lighting. Supplied in a 3 m length, it features a 19 mm × 19 mm anodised aluminium extrusion with a matching diffuser, 4 end caps and 6 mounting clips — ideal for neat 45‑degree installations in cabinetry, retail displays, kitchen units, and more.

Kit Includes:

• 1 × 3 m aluminium profile (19 mm × 19 mm) LEDAL11A3M
• 1 × LEDAL11DC3M - 3M diffuse cover
• LEDAL11EC - End Cap without hole ,
• LEDAL11ECH - End Cap with hole for cable entry
• 6 × mounting clips, LEDAL11MB

Key Features:

• Corner-fit 45deg profile for angled light projection
• Durable aluminium for a clean finish and effective LED cooling
• Integrated diffuser helps protect strips and soften light output
• Complete kit includes all fixings — no extra hardware needed
• Suitable for both domestic and commercial applications/li>
• Aluminium anodized track for LED Flex or LED modules/li>
• Thick base for high wattage LED strips/li>
• Easy and fast assembly and connection./li>
• Suitable for LED strips not wider than 13 mm

A trusted choice from Penn Elcom, this kit ensures a professional result in any LED strip installation.

Aluminium track from Penn Elcom LED to be used with Penn Elcom or OSRAM LED Strips or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Advantages:

• Excellent heat sink providing long life and reliability for LED
• asy installation of the LED Flex or modules
• 1 year Warranty.

Application Areas:

• Edge lighting
• Strip lighting
• Cove lighting
• Anywhere LED Flex or an LED module needs extra support.

Other Options/ Accessories Available:

• LEDAL11B - Black version
• LEDAL11W - White version
• LEDAL11M2 - 2M anodized version (grey)
• LEDBRKT02B - Special black bracket (for angle adjustment). Comes as pair.

Suitable for the Flex strips not over 11 mm.

Specification

• Height: 19 mm
• Length: 3000 mm
• Material: 6063 anodized aluminium
• Warranty: 1 year
• Width (Interior): 13.2 mm
• Width (Opening): 11.2 mm
• Base thickness: 3 mm
• Cover material: PC

LED shown in images for illustration purposes and is not included in profile
