3m Kit 17.9mm Wide Bendable Profile Ledal36m3

Comus 3m Kit 17.9mm wide Bendable Profile LEDAL36M3 LEDAL36M3

Bendable aluminium extrusion suitable for LED strips not wider than 12mm. Shallow and discrete, the profile and cover can be bended even by hand!
This new track from Penn Elcom LED can be bended back and forward around curved surfaces (following a U shape) but not sideways.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL36A3M - 3M anodized aluminium extrusion
LEDAL36DC3M - 3M diffuse cover
LEDAL36EC - 1x White End Cap without hole
LEDAL36ECH -1x White End Cap with hole for cable entry
LEDAL36MB - 6x Metallic Mounting Brackets

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 12 mm

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Edge lighting;
Strip lighting;
Cove lighting;
Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL36B - Black version
LEDAL36W - White version
LEDAL36 - 1M anodized version (grey)
LEDAL36M2 - 2M anodized version (grey)

Specifications:

Height: 5.7 mm
Length: 3000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (External): 17.9 mm
Width (Internal): 13.3 mm
Width (Opening): mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Smallest recommended bending angle: 60 deg Cover assembly method: Slide or clip in

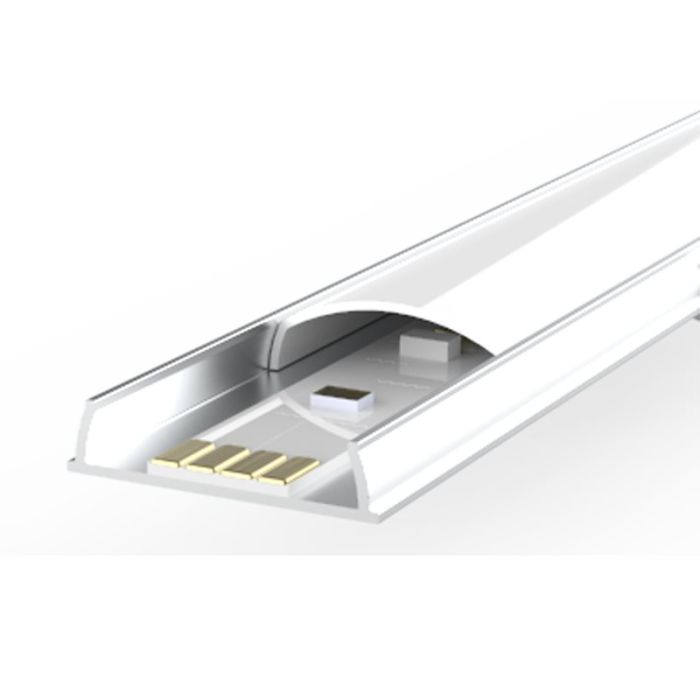

LED shown in images for illustration purposes and is not included in profile
