3m Kit 16mm Wide Recessed Fluted Profile Ledal39m3

Penn Elcom 3m Kit 16mm wide Recessed Fluted Profile LEDAL39M3 LEDAL39M3

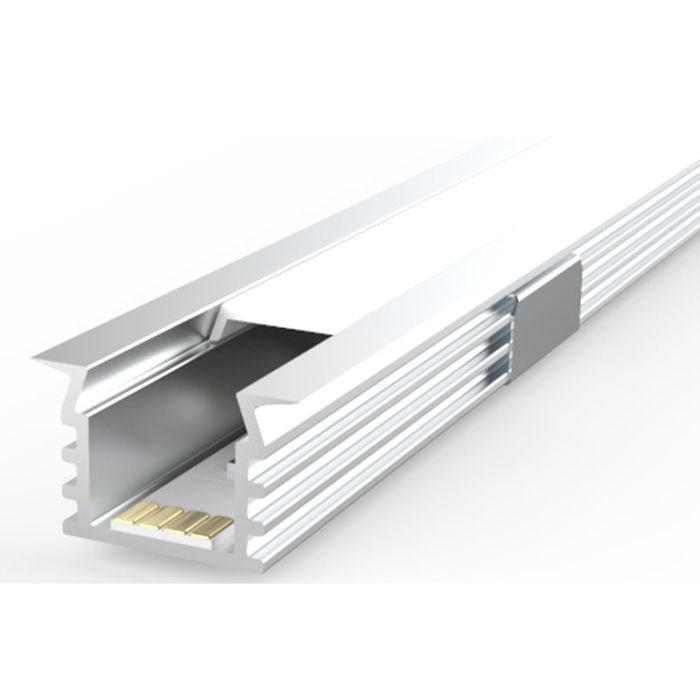

Fluted recessed aluminium extrusion suitable for LED strips not wider than 12Mm
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL39A3M - 3M anodized aluminium extrusion
LEDAL39MC3M - 3M opal cover
LEDAL39EC - 1x White End Cap without hole
LEDAL39ECH - 1x White End Cap with hole for cable entry
LEDAL39MB - 6x Metallic Brackets

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 11 mm

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Edge lighting;
Strip lighting;
Cove lighting;
Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL39B - Black version
LEDAL39W - White version
LEDAL39 - 1M anodized version (grey)
LEDAL39M2 - 2M anodized version (grey)

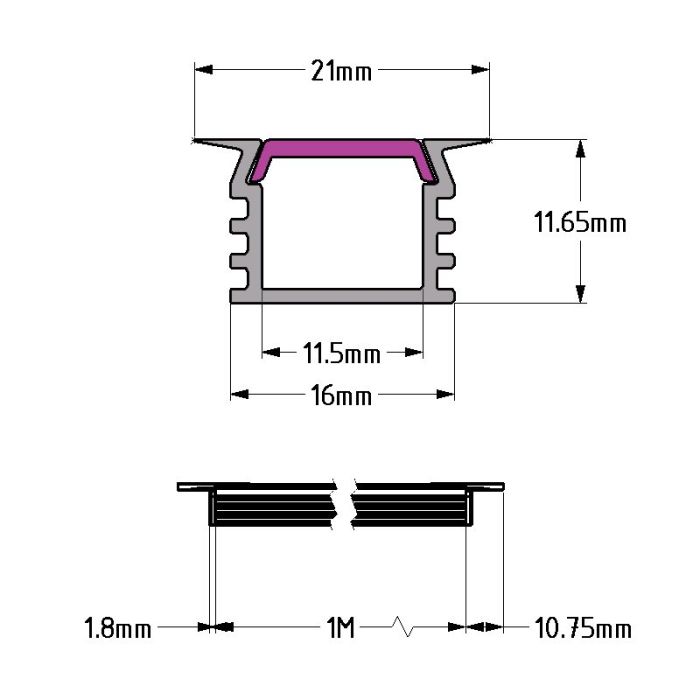

Specifications:

Height: 11.7 mm
Length: 3000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (Top): 22 mm
Width (Base): 16 mm
Width (Internal): 11.3 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Slide in

LED shown in images for illustration purposes and is not included in profile
