3m Kit 15mm Recessed Aluminium Profile Ledal14m3

Penn Elcom 3m kit 15mm Recessed Aluminium Profile LEDAL14M3 LEDAL14M3

Recessed mounted high depth aluminium extrusion suitable for LED strips (not wider than 12mm / 1/2").

New aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:
- LEDAL14A - Anodized aluminium extrusion
- LEDAL14DC - Diffuse cover
- LEDAL14EC - 1 x End Cap without hole
- LEDAL14ECH - 1 x End Cap with hole for cable entry
- LEDAL14MB - 4 x mounting brackets

Features:
- Aluminium anodized track for LED Flex or LED modules
- Low weight
- Easy and fast assembly and connection.
- Suitable for LED strips not wider than 12mm / 1/2"

Advantages:
- Excellent heat sink providing long life and reliability for LED
- Easy installation of the LED Flex or modules
- 1 year Warranty.

Application area:
- Edge lighting;
- Strip lighting;
- Cove lighting;
- Anywhere LED Flex or an LED module needs extra support.

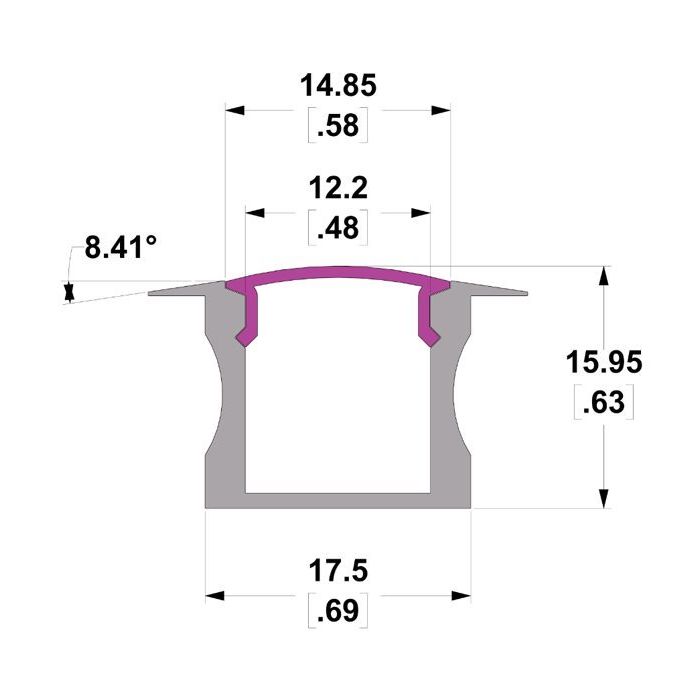

Dimensions
- Height: 15.95mm / 5/8"
- Width (Base): 17.5mm / 11/16"
- Width (Interior): 12.2mm / 1/2"
- Width (Top): 25mm / 1"
- Base thickness: 0.8mm / 1/32"
- Cover material: Polycarbonate

Finish: Aluminium

Length: 3m/ 118"

LED shown in images for illustration purposes and is not included in profile
