3m Kit 15.2mm Wide Wardrobe Profile Ledal38m3

Penn Elcom 3m Kit 15.2mm wide Wardrobe Profile LEDAL38M3 LEDAL38M3

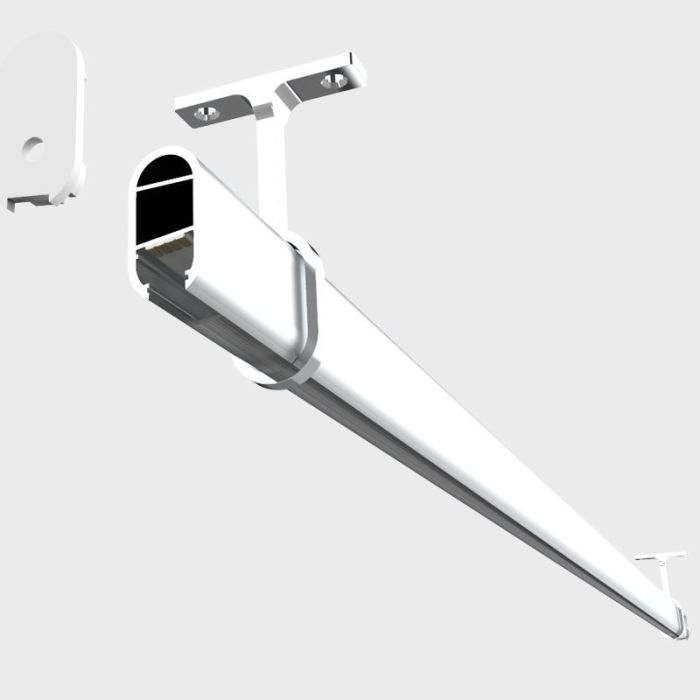

Aluminium extrusion suitable for LED strips not wider than 6mm. Ideal for wardrobe lighting. When using lengths above 2M the additional use of metallic hangers is recommended for extra support.

The metallic side brackets offer two functions: fixing and sealing of the profile giving it an overall nice finish. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL38A3M - 3M anodized aluminium extrusion
LEDAL38DC3M - 3M diffuse cover
LEDAL38MB - 2x Metallic side mounting brackets

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 6 mm
M3 wooden screws required for use with the metallic side brackets and hangers (not included)

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Wardrobe lighting;
Suspended lighting;
Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL38B - Black version
LEDAL38W - White version
LEDAL38 - 1M anodized version (grey)
LEDAL38M2 - 2M anodized version (grey)

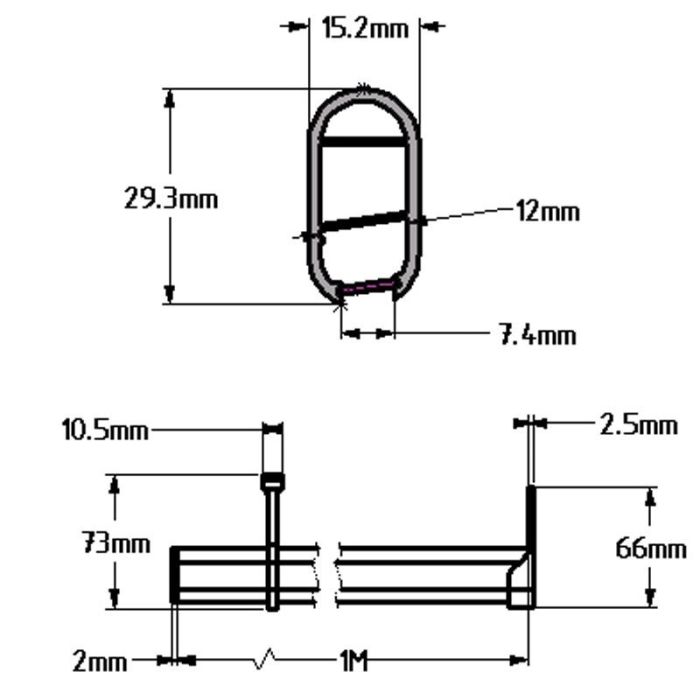

Specifications:

Height: 29.46 mm
Length: 3000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (External): 15.2 mm
Width (Internal): 12.16 mm
Width (Opening): 7.5 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Slide in
