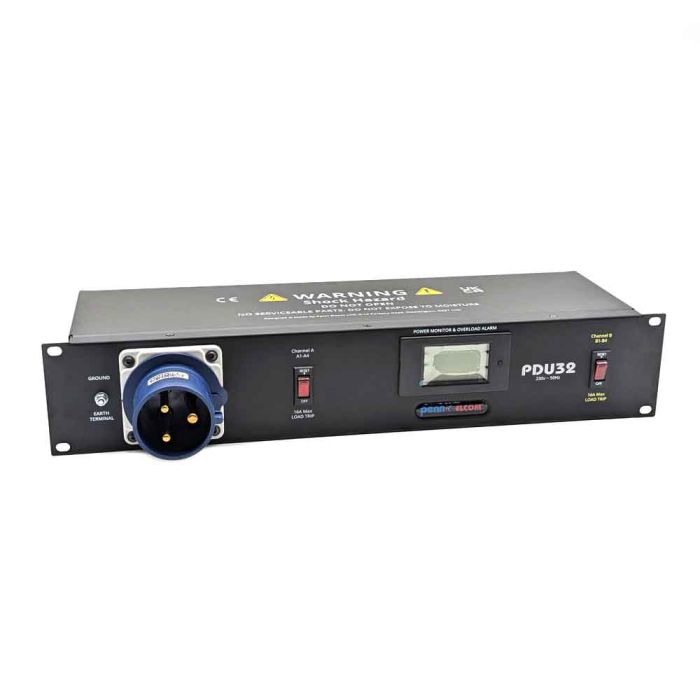

32amp Two Channel Rack Mount PDU with Power Monitoring, C-Form Socket Input

2U 19inch Rack Mount Power Monitoring Distribution Unit PDU. 32 Amp Input – 2x Banks on 16 Amp Outputs. PDU32-CF by Penn Elcom

The PDU has 32A input breaking out on two banks, with four PowerCon connectors each bank with 16 Amp thermal breakers all with Power Monitoring. Tailor made for Audio Visual, Theatre Multimedia & Touring rack applications.

Tailor made for Audio Visual, Theatre Multimedia & Touring rack applications. Looking for a reliable 32 amp rack mount power distribution unit? This 2U PDU offers two independent 16 amp circuits, each with four PowerCon outputs. The built-in power monitoring display provides essential information for managing your equipment. Ideal for professional audio, video, and lighting setups

Specifcation

• Input: 32 Amp 240v C-Form single-phase blue connector IP44
• Channel / Circuit A Output: Combined load of 16 Amps drawn across 4 x PowerCon, NAC3MPXXA on 16 Amp Overload protection.
• Channel / Circuit B Output: Combined load of 16 Amps drawn across 4 x PowerCon, NAC3MPXXA on 16 Amp Overload protection.

Also Includes:

• LCD Power Monitor that will display Current, Voltage, Power & Energy Levels.
• Two separate 16 Amp thermal breaker switches one on each bank of 4 outputs.
• Earthing Link, 4mm Screw terminal for Grounding Purposes.
• Colour-coded channels, A (grey) & B (yellow) for easy identification.
• Number of Sockets 8
• Size (U) 2U
• Weight 2.69kg
• Finish Black
