2U Vertical Drop-down Wall Mount 19-inch Rack, VDWR02

Brand: Penn Elcom
Manufacturer Code: VDWR02
SKU: FAV-VDWR02
In stock — Only 24 left

2U Vertical Wall 19-inch Rack VDWR02 By Penn Elcom


Product Description

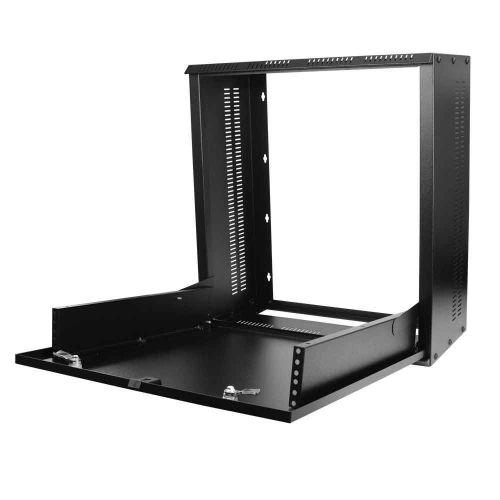

Penn Elcom 2U Vertical Wall 19-inch Rack VDWR02

2U Vertical drop-down AV or communications wall mount 19-inch rack system. Secure and compact system for deploying rack-mounted equipment.

  • Ventilated top, base, front, and side sections
  • The top and base are interchangeable with a 1U space for a blank, vented, or cable access panel
  • 2U door mounting fixtures are provided, with an option to add another 2U bracket (VDWR04) or a 2U mixer mount (VDWRMX) on top
  • Maximum equipment depth is 500mm with a combined maximum weight of 20kg.

Features:

  • Low-Profile saves space, this enables the rack to be used in restricted areas, just 320mm / 12.5in Depth
  • The design allows for equipment mounted inside to be active even with the door closed
  • Product weight: 13.6kg / 29.98 lbs
  • Dual Slam Shut Door Catches with a Master Key lock for additional security (Anti-Tamper)
  • Cable access is via the bottom 1U knock out - this can be fitted with 1U Brush Strip R1268/1UK-PBS
  • Standard 2U mounting frame is provided for fitting 2U Equipment up to 457mm / 18in Deep
  • Add-on 2U mounting frame can be added to give a 4U space (part code VDWR04 - Weight: 0.9kg / 1.98 lbs)
  • Sloped Mixer Mount frame add-on for Audio or DJ mixer with 2U amp space below, height 2U to 3U (part code VDWRMX)
  • Max supported load 20kg / 44 lbs


Additional Information

SKU
FAV-VDWR02
Brand
Penn Elcom
Barcode
840149904025
Manufacturer Code
VDWR02
