2u Rack Lid Latch Narrow And Very Shallow L903/7336z

Penn Elcom 2U Rack Lid Latch Narrow and Very Shallow L903/7336Z L903/7336Z

2 Unit 19inch Rack Lid Latch in Narrow and Very Shallow Plain Dish

Securely close your case with specially designed Penn Elcom latch mounted in a narrow dish, perfect for use on effect racks cases as small as 2U. The PennBrite zinc plating offers an excellent protection against corrosion with a distinctive bright finish. With a depth of only 7mm / 1/4, the very shallow dish will not protrude inside the case, even when used with panels as thin as 7mm / 1/4.

PRODUCT FEATURES:

• Dish Width: 100mm / 3 15/16
• Dish Height: 54mm / 2 1/8
• Dish Depth: 7mm / 1/4
• Offset: No
• Lockable: No
• Finish: PennBrite
• Material: 1.2mm / 18 gauge Steel
• Weight: 1.03kg / 0.23lb

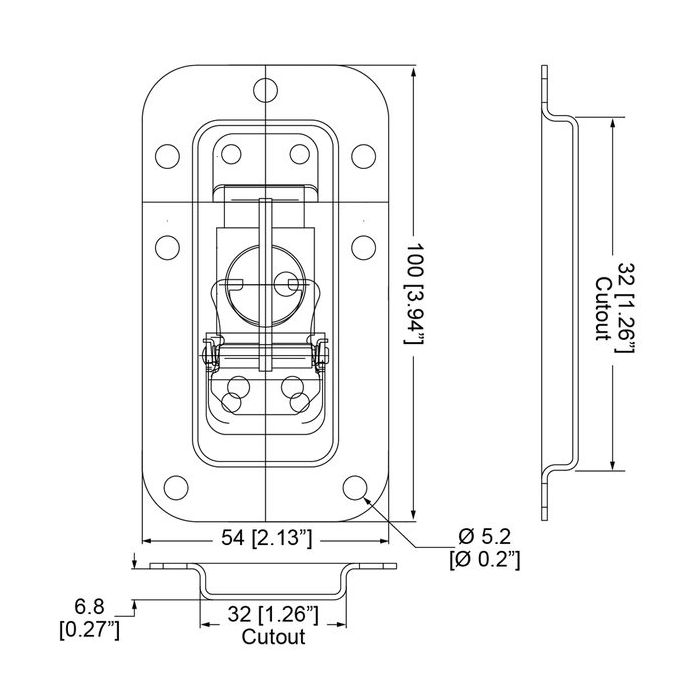

INSTALLATION INFORMATION:

• Panel Cut-Out Size:
• Cut-Out Width: 18mm + 58mm / 11/16 / 2 1/4
• Cut-Out Height: 32mm / 1 1/4
• From Split to Hole Centre: 10mm / 3/8
• Mounting Holes: 7 x 5.2mm / 3/16
• Rivets Required for Installation: 7
