2m Ledal04 Kit For 13.1mm Aluminium Profile Ledal04m2

Penn Elcom 2M LEDAL04 KIT for 13.1mm Aluminium Profile LEDAL04M2 LEDAL04M2

New aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT

LEDAL04A2M - 2M anodized aluminium extrusion
LEDAL04MC2M - 2M milky white cover
LEDAL04EC - End Cap without hole
LEDAL04ECH - End Cap with hole for cable entry
LEDAL04MB - 4 x mounting brackets

Features:
+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 13 mm

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other options/accessories available:

LEDAL04B - 1M Black version
LEDAL04W - 1M White version
LEDAL04 - 1M anodized version (grey)

Suitable for the Flex strips not over 13 mm..

Height: 14.8 mm
Length: 2000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Internal 13.1 mm
Width (External): 17.9 mm
Base thickness: 1.1 mm
Cover material: PC

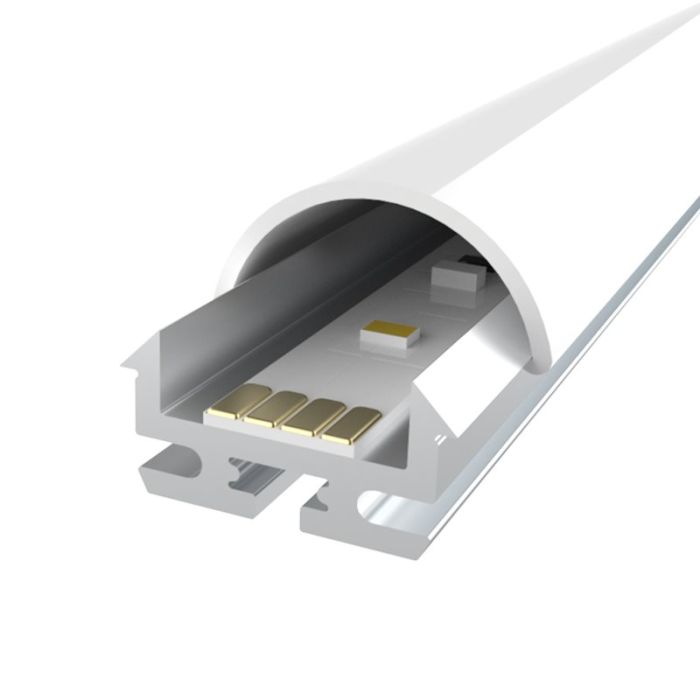

LED shown in images for illustration purposes and is not included in profile
