2m Kit 29.7mm Wide Corner/suspended Profile With C Cover Ledal40m2

Penn Elcom 2m Kit 29.7mm wide Corner/Suspended Profile with C Cover LEDAL40M2 LEDAL40M2

Corner aluminium extrusion suitable for LED strips not wider than 20mm or 2x 10mm. Can be surface mounted or suspended.
Special in-line and corner brackets available, allowing lengths to be joined to create different geometrical shapes.
The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT:

LEDAL40A2M - 2M anodized aluminium extrusion
LEDAL40MC2M - 2M opal C shaped cover
LEDAL40EC - 1x White End Cap without hole
LEDAL40EC - 1x White End Cap with hole for cable entry
LEDAL40MB - 4x Polycarbonate Bracket for surface mounting

Features:

Aluminium anodized track for LED Flex or LED modules
Low weight
Easy and fast assembly and connection
Suitable for LED strips not wider than 20 mm

Advantages:

Excellent heat sink providing long life and reliability for LED
Easy installation of the LED Flex or modules
1 year Warranty.

Application area:

Kitchen lighting;
Strip lighting;
Suspended lighting;
Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL40B - Black version
LEDAL40W - White version
LEDAL40M - 1M anodized version (grey)
LEDAL40M3 - 3M anodized version (grey)
LEDALSWTYPEC - Pair of suspension Wires
LEDAL40CB - Corner Bracket
LEDAL40JB - Joining (In-line) Bracket

Specifications:

Height: 29.7 mm
Length: 2000 mm
Material: 6063-T5 anodized aluminium
Warranty: 1 year
Width (External): 29.7 mm
Width (Internal): 20.55 mm
Base thickness: 1.1 mm
Cover material: Polycarbonate
Cover assembly method: Clip in

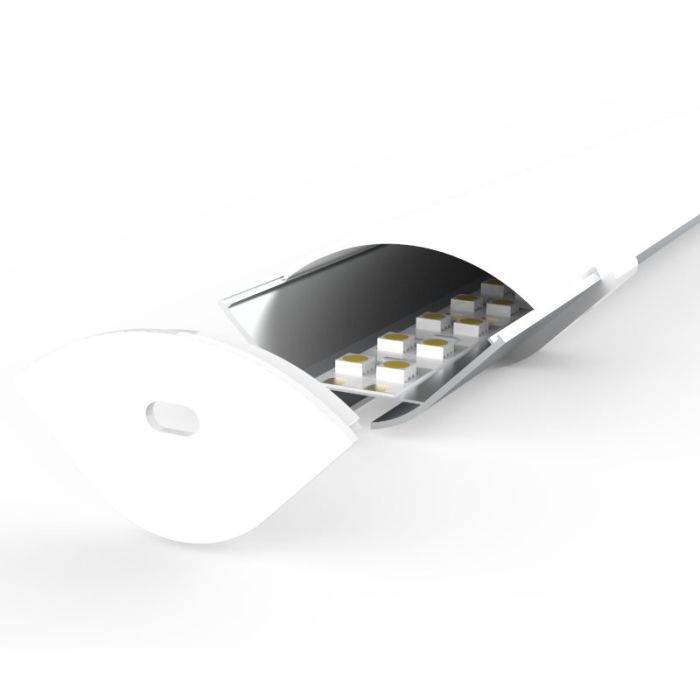

LED shown in images for illustration purposes and is not included in profile
