2m Kit 20.6mm Recessed Aluminium Profile Ledal20m2

Comus 2m Kit 20.6mm Recessed Aluminium Profile LEDAL20M2 LEDAL20M2

Aluminium track from Penn Elcom LED to be used with OSRAM LINEARlight Flex or other LED modules. The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

The tracks can be shortened to the desired length.

Included in the KIT

LEDAL20A2M - 2M anonized aluminium extrusion
LEDAL20DC2M - 2M diffuse cover
LEDAL20EC - End Cap without hole
LEDAL20ECH - End Cap with hole for cable entry
LEDAL20MB - 4 x mounting brackets

Features:

+ Aluminium anodized track for LED Flex or LED modules
+ Low weight
+ Easy and fast assembly and connection
+ Suitable for LED strips not wider than 20 mm

Advantages:
+ Excellent heat sink providing long life and reliability for LED
+ Easy installation of the LED Flex or modules
+ 1 year Warranty.

Application area:
+ Edge lighting;
+ Strip lighting;
+ Cove lighting;
+ Anywhere LED Flex or an LED module needs extra support.

Other options available:

LEDAL20B - 1M Black version
LEDAL20W - 1M White version
LEDAL20 - 1M anodized version (grey)

Suitable for the Flex strips not over 20 mm.

Height: 10 mm
Length: 2000 mm
Material: 6063 anodized aluminium
Warranty: 1 year
Width (Interior): 20.6 mm
Base thickness: 1.1 mm
Cover material: PC

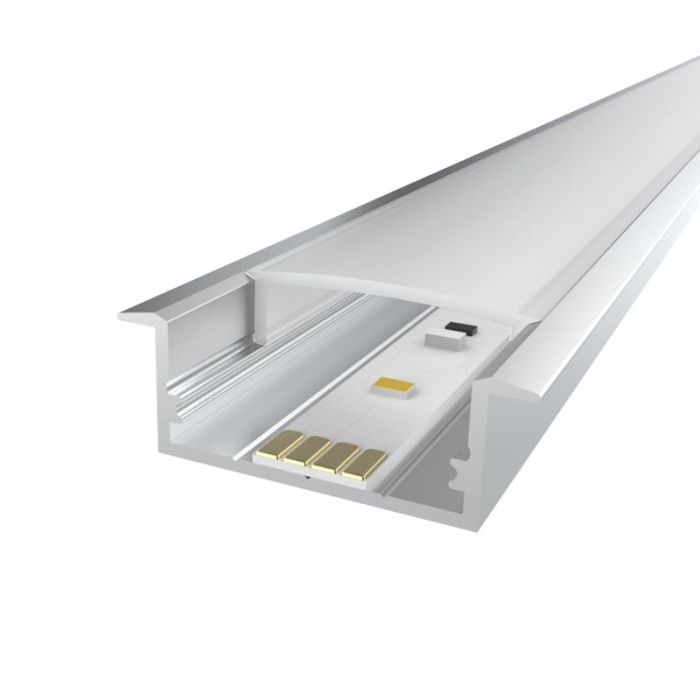

LED shown in images for illustration purposes and is not included in profile
