LED Profile 2m 15x15mm Plaster-in Outer Corners White Finish Ledal45m2w

Penn Elcom 2m 15x15mm Plaster-in profile for outer corners, with White finish LEDAL45M2W

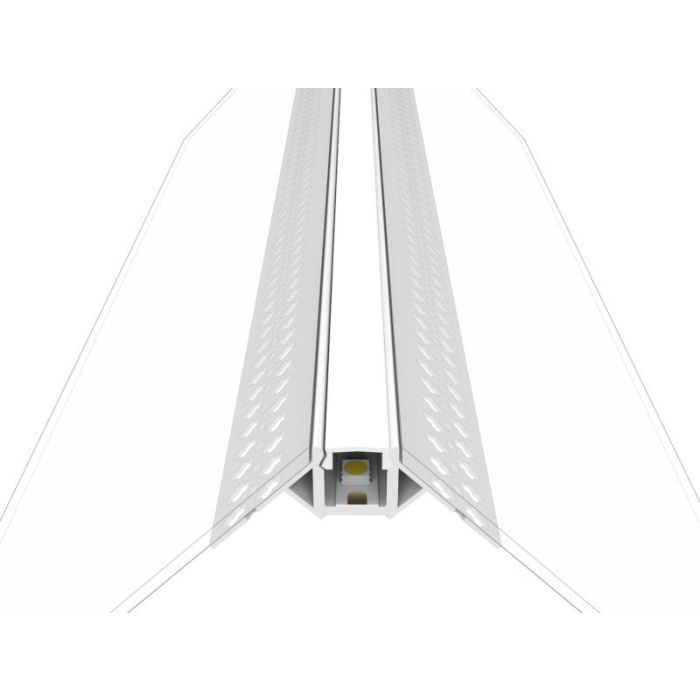

Plaster-in aluminum extrusion for recessing light strip into a plasterboard wall. Suitable for LED strips not wider than 11mm. For outer wall corners! The track works as an excellent heat sink, providing optimum cooling of LED modules for long life and high reliability.

How to install: Fix/screw aluminium profile into your plasterboard, plaster the edges, install your led strips inside the profile and finally push-in the milky cover.

The tracks can be shortened to the desired length. This is a bespoke service and charged additionally.

Looking to get a dotless (no hot spots) lighting effect? Use together with the 5W COB FossLED strips in 2700K Warm White or 4000K Cool/Neutral White

Need a more cost-effective solution? Try the Osram 8.6W Basic Flex in 2700K Warm White or 3000K Warm White (slightly cooler).

Included in the KIT:

• LEDAL45A2MW - 2M WHITE aluminium extrusion
• LEDAL45MC2M - 2M milky white cover
• LEDAL45EC - 1x White End Cap without hole
• LEDAL45EC - 1x White End Cap with hole for cable entry

Features:

• White powder coated aluminum track for LED Flex or LED modules
• Low weight
• Easy and fast assembly and connection
• Suitable for LED strips not wider than 11mm

Advantages:

• Excellent heat sink providing long life and reliability for LED
• Easy installation of the LED Flex or modules
• 1 year Warranty.

Application area:

• Plasterboard in kitchens;
• Plasterboard in rooms;
• Plasterboard in corridors;
• Plasterboard in meeting rooms.

Specifications:

• Height: 15 mm
• Length: 2000 mm
• Material: 6063-T5 anodized aluminium
• Warranty: 1 year
• Width (Back): 52.83 mm
• Width (Internal): 12.5 mm
• Base thickness: 1.1 mm
• Cover material: Polycarbonate
• Cover assembly method: Push in

LED shown in images for illustration purposes and is not included in profile
